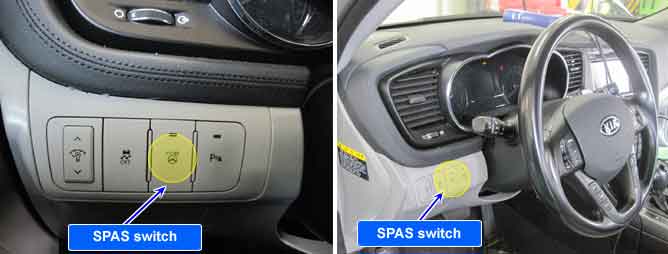

There is an ON/OFF switch for SPAS. This switch function is as follows;
ON : SPAS is in operation, OFF : SPAS is not in operation, Blinking : Faulty System or Now in communication for diagnosis or Coding Error (included No coding)
When SPAS detects open or short in LED warning circuit on SPAS switch, SPAS sets this DTC.
Item | Detecting Condition | Possible cause |
DTC Strategy |
•
Circuit check between LED warning light on SPAS switch and SPAS ECU | 1. Open or Short in the circuit 2. Faulty SPAS switch |
Enable Conditions |
•
IG ON. | |
Threshold vlaue |
•
Open or Short in the circuit. | |
Diagnostic Time |
•
For more than 1 SEC | |
DTC Erasing Time |
•
- |
