1.

IG "OFF".

2.

Connect GDS.

3.

IG "ON" and engine "OFF".

4.

Select "Diagnostic Trouble Codes(DTC)" mode.

5.

Check for any DTCs on the "Diagnostic Trouble Code(DTC)" with GDS.

6.

Erase DTC.

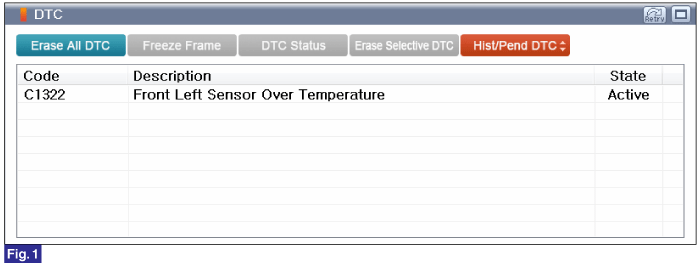

Fig.1) Diagnostic Trouble Code(DTC) is shown above

7.

After erase DTC Check for any DTCs again.

8.

Is the same DTC occurred again?

	▶ Go to Next procedure.
	▶ Fault is intermittent caused by poor contact in the TPMS module’s connector or was repaired and TPMS module memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

9.

Connect GDS to Data Link Connector(DLC).

10.

IG "ON"

11.

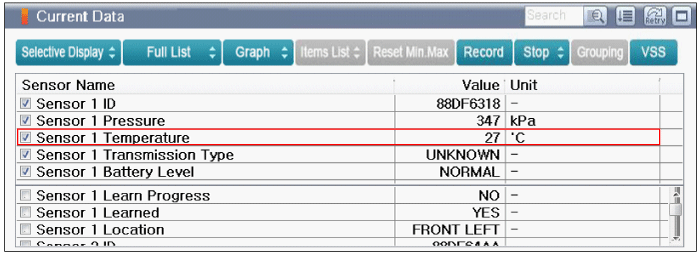

Monitor "Sensor 1 Temperature" parameter on "Current Data" with GDS.

Specification : 'Temperature' is Less than 239℉(115℃)

12.

Is parameter within specifications?

▶ Fault is intermittent caused by poor contact in the TPMS module’s connector or was repaired and TPMS module memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

▶ Due to damaged tires, driving of lower pressure tires, and the excessive actuation of brake. these may cause a temporary fault code.

▶ First check the pressure of tires and the status of tires, second repair tires or replace with known-good tires as necessary, finally go to "Verification of Vehicle Repair" procedure.

▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
