1.

IG "OFF".

2.

Connect GDS.

3.

IG "ON" and engine "OFF".

4.

Select "Diagnostic Trouble Codes(DTC)" mode.

5.

Check for any DTCs on the "Diagnostic Trouble Code(DTC)" with GDS.

6.

Erase DTC.

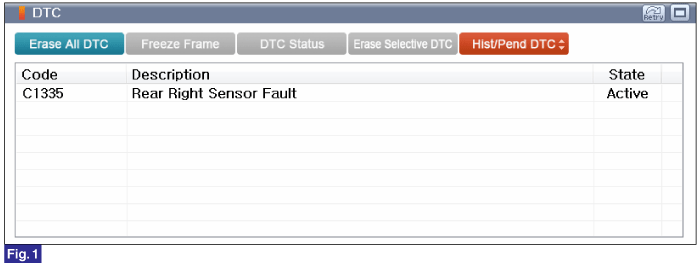

Fig.1) Diagnostic Trouble Code(DTC) is shown above

7.

After erase DTC Check for any DTCs again.

8.

Is the same DTC occurred again?

▶ Check for after market parts that can interfere TPMS sensor signal.

▶ Substitute with known-good RR TPMS Sensor and check for proper operation. If problem is corrected, replace RR TPMS Sensor and then go to "Verification of Vehicle Repair" procedure.

▶ Perfrom "Register Sensor" in "Vehicle S/W Management" with GDS TPMS(Exciter) or drive vehicle with over 25 km/h for 10 minutes to complete auto-learning and auto-location, after Rear Right TPMS Sensor is replaced.

▶ Fault is intermittent caused by poor contact in the TPMS module’s connector or was repaired and TPMS module memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

9.

Connect GDS to Data Link Connector(DLC).

10.

IG "ON"

11.

Monitor "Sensor 3 Batterey Level" parameter on "Current Data" with GDS.

Specification : NORMAL

12.

Is parameter within specifications?

▶ Fault is intermittent. It has been repaired and TPMS Module memory is not cleared yet.

▶ Go to "Verification of vehicle Repair" procedure.

▶ Substitute with known-good RR TPMS Sensor and check for proper operation. If problem is corrected, replace RR TPMS Sensor and then go to "Verification of Vehicle Repair" procedure.

▶ Perfrom "Register Sensor" in "Vehicle S/W Management" with GDS TPMS(Exciter) or drive vehicle with over 25 km/h for 10 minutes to complete auto-learning and auto-location, after RR TPMS Sensor is replaced.

▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
