Replacement
[General]
caution
●

Put on gloves to protect your hands.

●

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

●

Take care not to bend or scratch the trim and panels.

1.

Remove the trunk trim.

2.

Installation is the reverse of removal.

note
●

Replace any damaged clips.

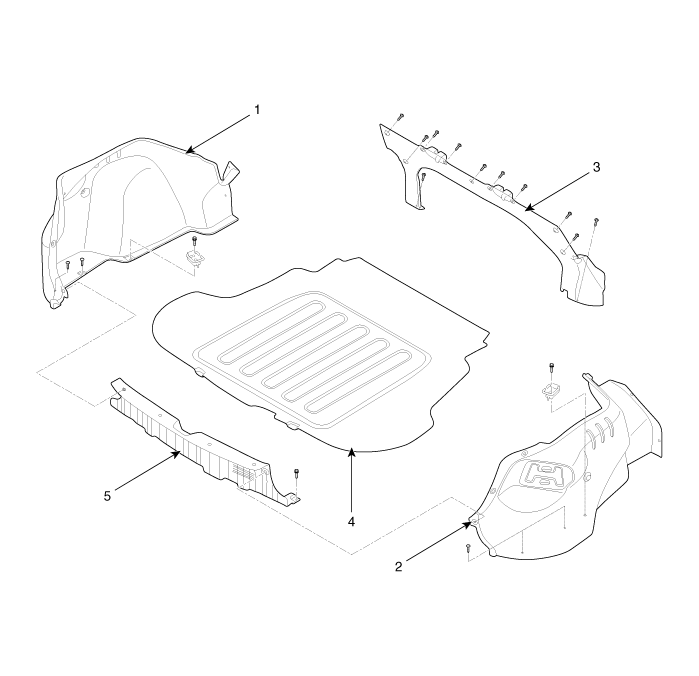

1. Luggage side trim [LH]

2. Luggage side trim [RH]

3. Partition lower trim

4. Luggage covering mat & board

5. Rear transverse trim

[Seat folding]
caution
●

Put on gloves to protect your hands.

●

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.

●

Take care not to bend or scratch the trim and panels.

1.

Remove the trunk trim.

2.

Installation is the reverse of removal.

note
●

Replace any damaged clips.

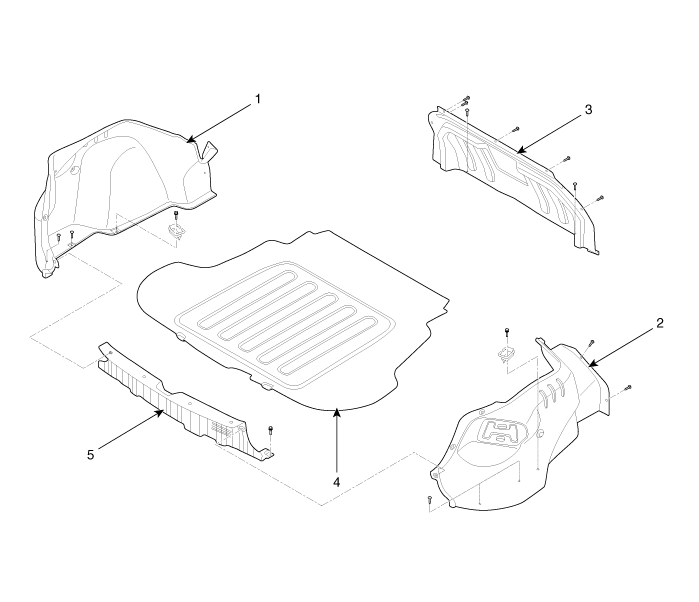

1. Luggage side trim [LH]

2. Luggage side trim [RH]

3. Partition lower trim

4. Luggage covering mat & board

5. Rear transverse trim
