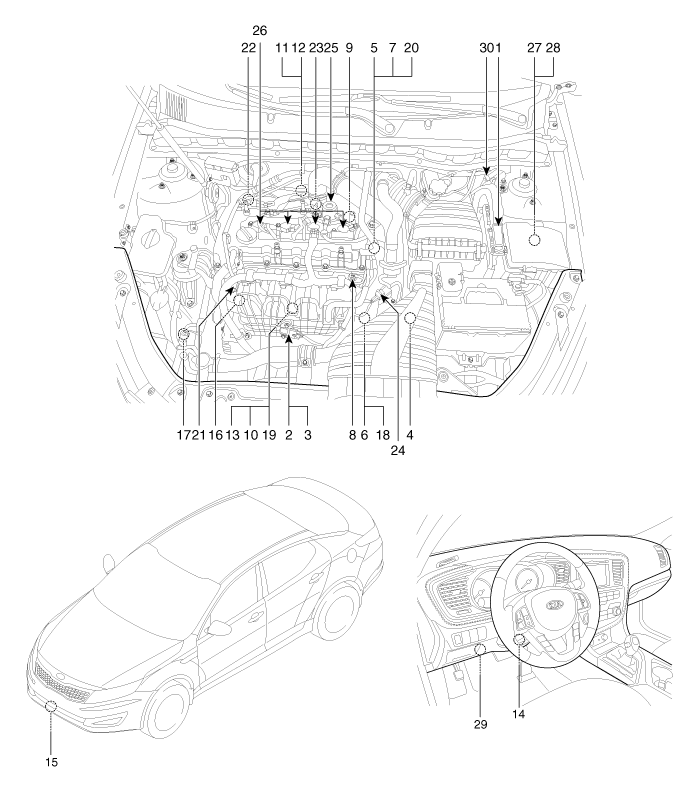

1. Engine Control Module (ECM)
2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)
4. Boost Pressure Sensor (BPS)
5. Engine Coolant Temperature Sensor (ECTS)
6. Throttle Position Sensor (TPS) [Integrated into ETC Module]
18. ETC Motor [Integrated into ETC Module]
7. Crankshaft Position Sensor (CKPS)
8. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
9. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
10. Knock Sensor (KS)
11. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]
12. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
13. Rail Pressure Sensor (RPS)
19. Injector
14. Accelerator Position Sensor (APS)
15. Ambient Temperature Sensor (ATS)
16. CVVT Oil Temperature Sensor (OTS)
21. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]
17. A/C Pressure Transducer (APT)
20. Purge Control Solenoid Valve (PCSV)
22. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
23. Electric Waste Gate Actuator (EWGA)
24. RCV Control Solenoid Valve
25. Fuel Pressure Control Valve
26. Ignition Coil
27. Main Relay
28. Fuel Pump Relay
29. Data Link Connector (DLC) [16-Pin]
30. Multi-Purpose Check Connector [20-Pin]
