The CVVL (Continuously Variable Valve Lift) system is a device that can continuously control the valve lift depending on the operating conditions.

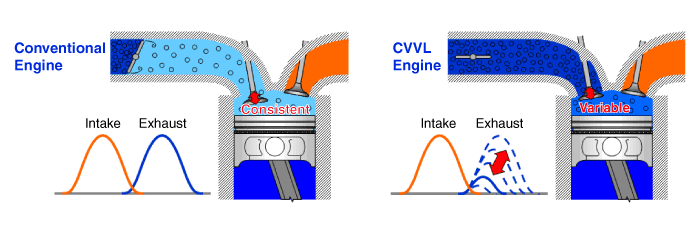

As shown below, conventional engines control air intake quantity using throttle valve.
But, the CVVL engine controls air intake quantity through the valve lift control with the throttle valve always opened.
Advantages of the CVVL system are as follows:
Improved engine performance at all driving areas through control of valve lift
Pumping Los reduction / Fuel efficiency increase through restriction of the use of the throttle valve
Improved responsiveness through reduced air filling delays with valve lift air intake control
Reducing the catalytic activity hours / Exhaust temperature upward through delay of the ignition timing in an initial start

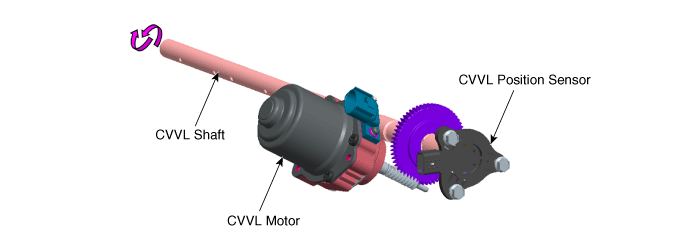

CVVL position sensor measures the angle of rotation of the CVVL shaft using the two hall element and forwards this value to the engine control module (ECM). ECM controls the CVVL motor to move the valve lift position according to the driving condition.

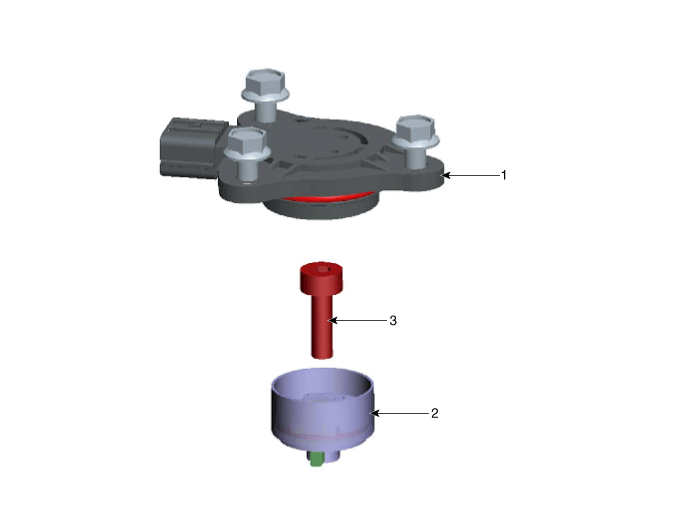

1. Sensor housing 2. Magnet wheel assembly | 3. M screw |
