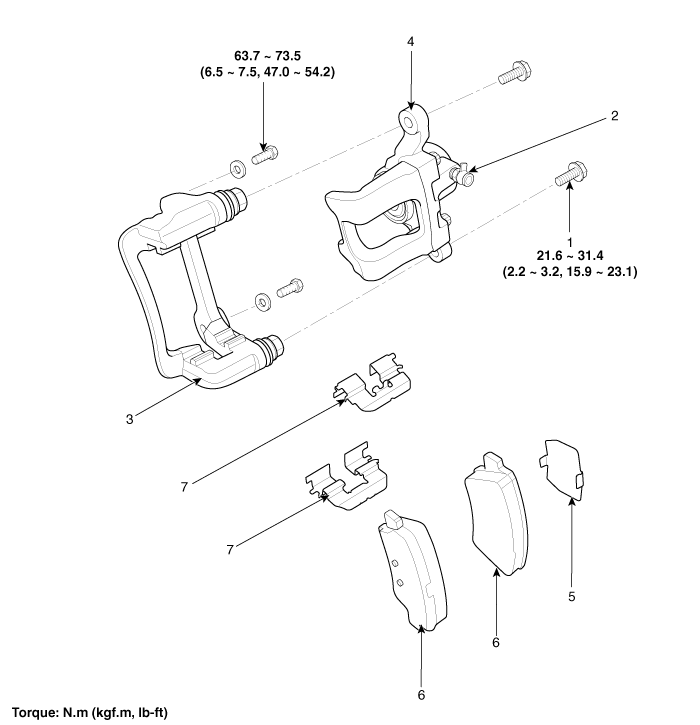

Components (Without EPB)

1. Guide rod bolt

2. Bleed screw

3. Caliper carrier

4. Caliper body

5. Inner pad shim

6. Brake pad

7. Pad retainer

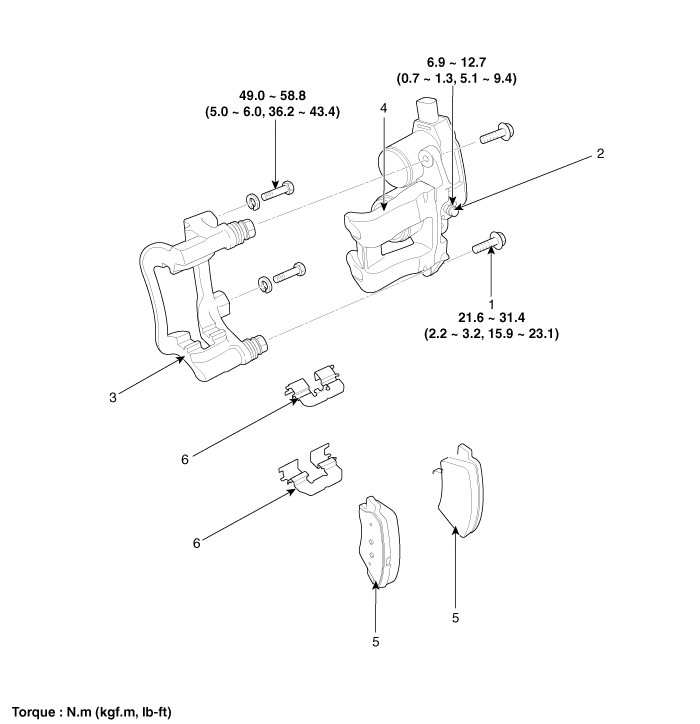

Components (With EPB)

1. Guide rod bolt

2. Bleed screw

3. Caliper carrier

4. Caliper body

5. Brake pad

6. Pad retainer
