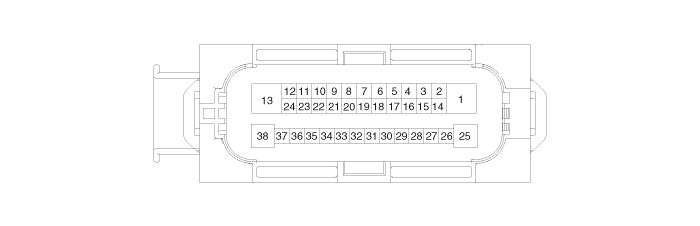

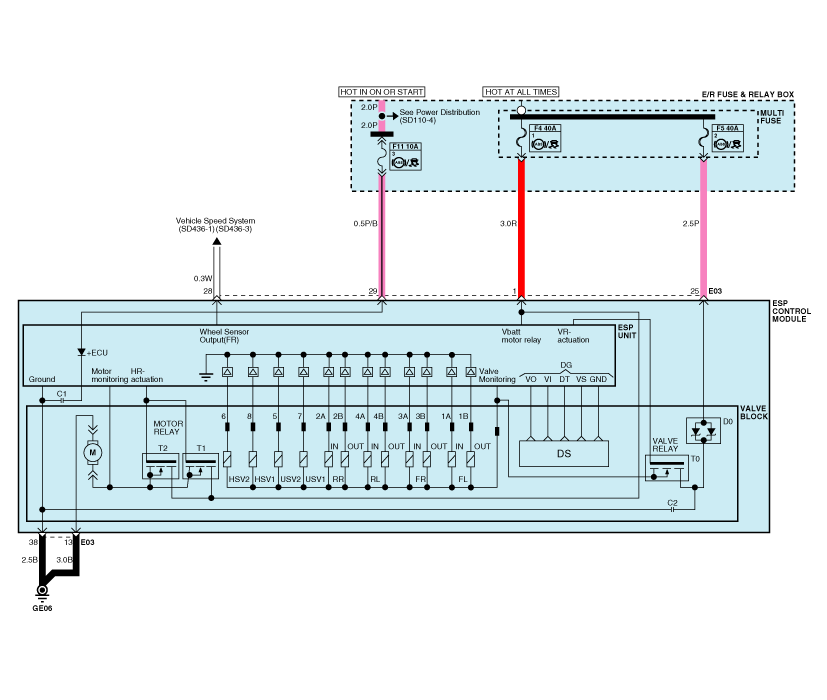

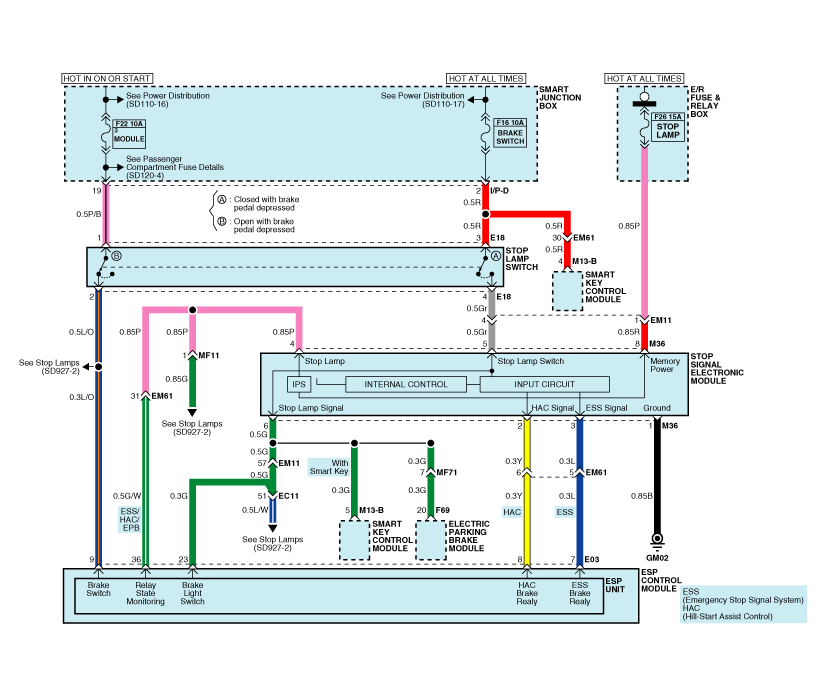

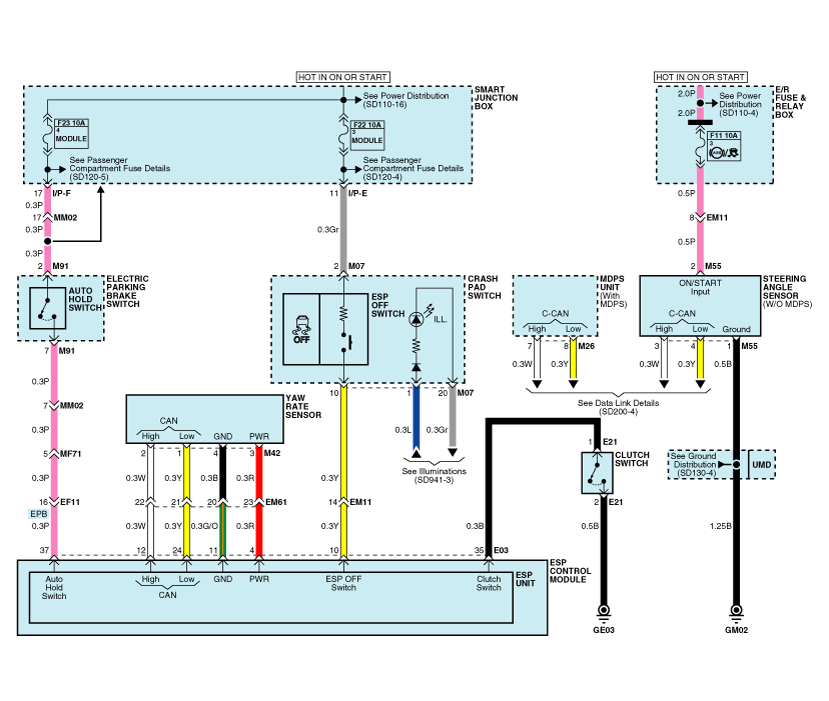

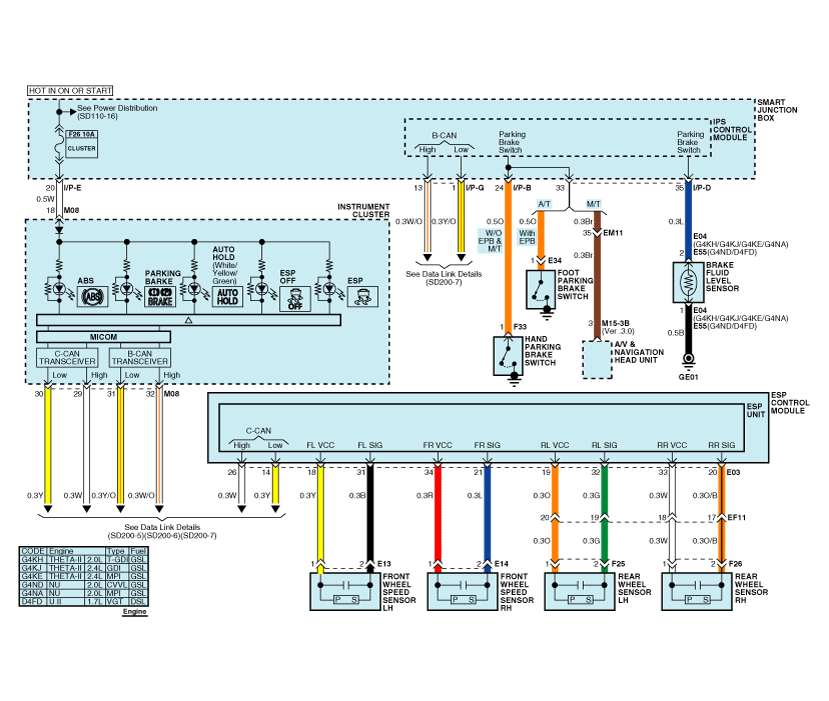

Connector Terminal | Specification | Remark | |
No | Description | ||
29 | IGNITION1(+) | High level of wake up voltage : 4.5V < V < 16.0V Low level of wake up voltage : V < 2.4V Max. current : I < 50mA | |
25 | POS. BATTERY 1.(SOLENOID) | Over voltage range : 17.0 ± 0.5V Operating voltage range : 10.0 ± 0.5V ＜ V ＜ 16.0 ± 0.5V Low voltage range : 7.0 ± 0.5V ＜ V ＜ 9.5 ± 0.5V Max. current : I ＜ 40A Max. leakage current : I < 0.25mA | |
1 | POS. BATTERY 2.(MOTOR) | Operating voltage range: 10.0 ± 0.5V ＜ V ＜ 16.0 ± 0.5V Rush current : I ＜ 110A Max current : I ＜ 40A Max leakage current : I ＜ 0.25mA | |
38 | GROUND | Rated current : I ＜550mA Max. current: I ＜ 40A | |
13 | PUMP MOTOR GROUND | Rush current : I ＜ 110A Max current : I ＜ 40A | |
11 | SENSOR GROUND | Rated current : I ＜250mA | |
4 | SENSOR POWER | Max current Capability : I ＜ 250mA Max voltage : V_BAT1 -0.8V | |
23 | BRAKE LIGHT SWITCH | Input voltage (Low) : V < 2V Input voltage (High) : V > 6V Max. Input current : I < 3mA (@12.8V) | |
9 | BRAKE SWITCH | ||
35 | CLUTCH SWITCH (M/T Only) | Input voltage (Low) : V ＜ 2V Input voltage (High) : V > 6V Max input current : I ＜ 5mA (@12.8V) | |
28 | SENSOR FRONT RIGHT OUTPUT | External pull up resistance : 1 KΩ ＜ R Output duty :50 ± 20% | |
10 | ESP ON/OFF SWITCH | Input voltage (Low) : V ＜ 2V Input voltage (High) : V > 6V Max input current : I ＜3mA | |
14 | CAN BUS LINE(LOW) | Max. Input current : I ＜ 10mA | |
26 | CAN BUS LINE(HIGH) | ||
18 | SENSOR FRONT LEFT POWER | Output voltage : V_BAT1 -0.6V ~ V_BAT1 -1.1V Output current : Max 30mA | |
34 | SENSOR FRONT RIGHT POWER | ||
19 | SENSOR REAR LEFT POWER | ||
33 | SENSOR REAR RIGHT POWER | ||
31 | SENSOR FRONT LEFT SIGNAL | Input current LOW : 5.9 ~ 8.4mA Input current HIGH : 11.8 ~ 16.8mA Frequency range : 1 ~ 2500Hz Input duty : 50 ± 10% | Typ. 7mA Typ. 14mA |
21 | SENSOR FRONT RIGHT SIGNAL | ||
32 | SENSOR REAR LEFT SIGNAL | ||
20 | SENSOR REAR RIGHT SIGNAL | ||
12 | CAN SENSOR LINE (HIGH) | Max. input current : I ＜ 10mA | |
24 | CAN SENSOR LINE (LOW) | ||
8 | BRAKE RELAY | Max. Current : I＜ 180mA Max.Output Low Voltage : V＜ 1.2V | |
36 | RELAY STATE MONITORING | Input voltage (Low) : V ＜ 2V Input voltage (High) : V > 6V Max. Input current : I < 10mA | |
