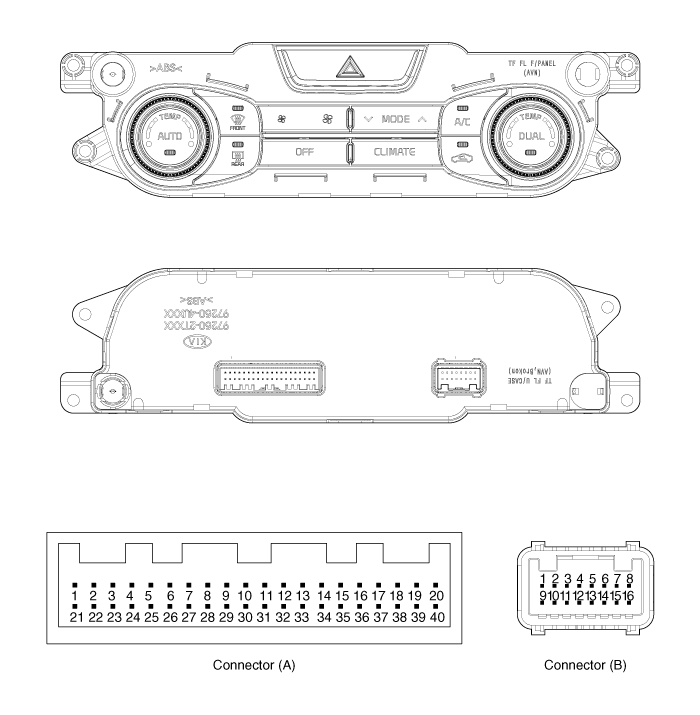

Connector | PIN NO. | Function | Connector | PIN NO. | Function |
Connector (A) | 1 | ILL+(TAIL) | Connector (A) | 29 | ECV (+) |
2 | SENSOR REF (+5V) | 30 | ECV (-) (GND) | ||
3 | HAZARD SIGNAL | 31 | PHOTO SENSOR (-) -LEFT | ||
4 | ACC | 32 | PHOTO SENSOR (-) -RIGHT | ||
5 | MODE ACT'R (VENT) | 33 | HTD | ||
6 | MODE ACT'R (DEF) | 34 | REAR DEFOG S/W | ||
7 | MODE ACT'R F/B | 35 | C-CAN | ||
8 | INTAKE ACT'R (FRE) | 36 | - | ||
9 | INTAKE ACT'R (REC) | 37 | PTC ON SIGNAL | ||
10 | INTAKE ACT'R F/B | 38 | PTC RELAY 2 | ||
11 | TEMP ACT'R (COOL)-DIVER | 39 | PTC RELAY 3 | ||
12 | TEMP ACT'R (WARM)-DIVER | 40 | SENSOR GND | ||
13 | TEMP ACT'R F/B-DIVER | Connector (B) | 1 | GND | |
14 | TEMP ACT'R (COOL)-PASSENGER | 2 | - | ||
15 | TEMP ACT'R (WARM)-PASSENGER | 3 | DEF ACT'R (CLOSE) | ||
16 | TEMP ACT'R F/B-PASSENGER | 4 | DEF ACT'R (OPEN) | ||
17 | C_CAN HIGH | 5 | DEF ACT'R F/B | ||
18 | C_CAN LOW | 6 | HUMIDITY (PWM) | ||
19 | DETENT OUT(+) | 7 | - | ||
20 | ILL-(RHEO) | 8 | IGN2 | ||
21 | ION SIGNAL | 9 | GND | ||
22 | CLEAN SIGNAL | 10 | - | ||
23 | IONIZER DIAGNOSIS | 11 | BLOWER MOTOR (+) | ||
24 | - | 12 | FET (GATE) | ||
25 | - | 13 | FET (DRAIN F/B) | ||
26 | AMB SENSOR (+) | 14 | ISG-DC | ||
27 | - | 15 | IGN1 | ||
28 | EVAP SENSOR (+) | 16 | BATT |

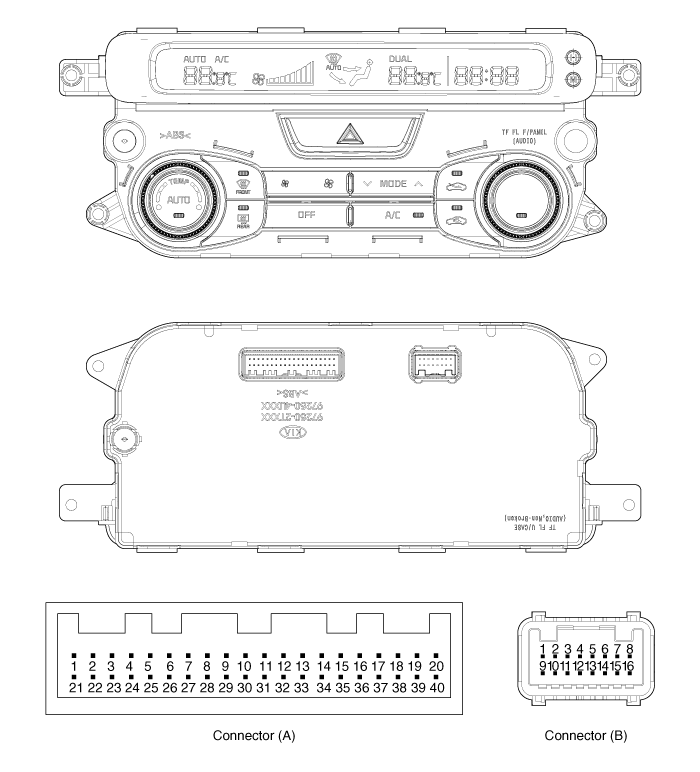

Connector | PIN NO. | Function | Connector | PIN NO. | Function |
Connector (A) | 1 | ILL+(TAIL) | Connector (A) | 29 | ECV (+) |
2 | SENSOR REF (+5V) | 30 | ECV (-) (GND) | ||
3 | HAZARD SIGNAL | 31 | PHOTO SENSOR (-) -LEFT | ||
4 | - | 32 | PHOTO SENSOR (-) -RIGHT | ||
5 | MODE ACT'R (VENT) | 33 | HTD | ||
6 | MODE ACT'R (DEF) | 34 | REAR DEFOG S/W | ||
7 | MODE ACT'R F/B | 35 | C-CAN | ||
8 | INTAKE ACT'R (FRE) | 36 | - | ||
9 | INTAKE ACT'R (REC) | 37 | PTC ON SIGNAL | ||
10 | INTAKE ACT'R F/B | 38 | PTC RELAY 2 | ||
11 | TEMP ACT'R (COOL)-DIVER | 39 | PTC RELAY 3 | ||
12 | TEMP ACT'R (WARM)-DIVER | 40 | SENSOR GND | ||
13 | TEMP ACT'R F/B-DIVER | Connector (B) | 1 | GND | |
14 | TEMP ACT'R (COOL)-PASSENGER | 2 | - | ||
15 | TEMP ACT'R (WARM)-PASSENGER | 3 | DEF ACT'R (CLOSE) | ||
16 | TEMP ACT'R F/B-PASSENGER | 4 | DEF ACT'R (OPEN) | ||
17 | C_CAN HIGH | 5 | DEF ACT'R F/B | ||
18 | C_CAN LOW | 6 | HUMIDITY (PWM) | ||
19 | DETENT OUT(+) | 7 | - | ||
20 | ILL-(RHEO) | 8 | IGN2 | ||
21 | ION SIGNAL | 9 | GND | ||
22 | CLEAN SIGNAL | 10 | - | ||
23 | IONIZER DIAGNOSIS | 11 | BLOWER MOTOR (+) | ||
24 | MM_CAN HIGH | 12 | FET (GATE) | ||
25 | MM_CAN LOW | 13 | FET (DRAIN F/B) | ||
26 | AMB SENSOR (+) | 14 | ISG-DC | ||
27 | - | 15 | IGN1 | ||
28 | EVAP SENSOR (+) | 16 | BATT |
