4.
Remove the reservoir-cup (E) after releasing the fixing hooks.
Remove the fuel pump (Refer to “Fuel Pump” in this group).

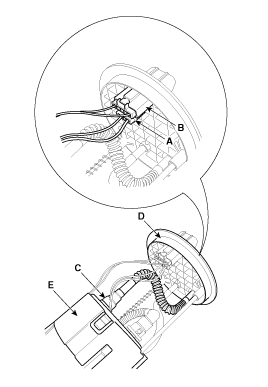

Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).
Disconnect the fuel feed tube quick-connector (C), and then separate the head assembly (D).
Remove the reservoir-cup (E) after releasing the fixing hooks.
Remove the fuel pressure regulator (A) and disconnect the fuel tube (B) after releasing the fixing hooks.
Be careful of O-ring.
Separate the electric pump motor (A) from the fuel filter.
1. Head Assembly
2. Electric Pump Motor
3. Fuel Filter
4. Fuel Sender
5. Fuel Pressure Regulator
