If excessive black smoke is discharged by DPF system and Engine control system malfunction. DPF would be damaged by excessive black smoke.
If excessive black smoke is discharged through exhaust muffler or vehicle is driven for a long time with poor acceleration, Inspect the DPF visually after removing the DPF.
IG S/W 'OFF', ENGINE 'OFF'
Remove 'Lamda sensor'.

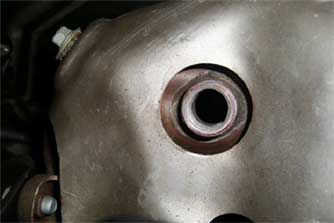

Inspect the front of DPF(Diesel Oxidation Catalyst) visually through lamda sensor hole.
☞ A viewpoint is very narrow therefore, If there is a doubt about DPF damage, Inspect next procedure as below.
☞ If there is damage on the front of DPF, Inspect DPF after removing it.
Remove the front muffler after lifting the vehicle.

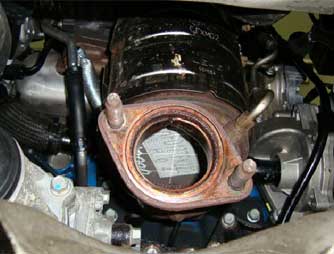

Inspect the rear of DPF visually.
☞ Inspect DPF damage, melting.
☞ If there is crack on the DPF, You can see the soot on the rear of DPF.
Symptom | Inspection procedure | |
Case1 | ● In case of melting of DOC (DPF) in the DPF assembly, | ● Replace the DPF assembly. ● Repair the trouble causing part before replacing. ● Reset 'Coverage driven length' and 'Eng on time' after repairing the DPF assembly. |
Case2 | ● In case of floating sound in the DPF assembly, (When DPF assembly is shaken.) | ● Fixing between DPF assembly housing and DOC (DPF) is off or broken. ● Replace the DPF assembly. ● Reset 'Coverage driven length' and 'Eng on time' after repairing the DPF assembly. |
Case3 | ● In case that black smoke is discharged through muffler. (When engine is accelerated after installing the DPF assembly.) | ● There is small crack or broken of DPF in the DPF assembly. ● Replace the DPF assembly. ● Reset 'Coverage driven length' and 'Eng on time' after repairing the DPF assembly. |
Case4 | ● In case of no trouble in the DPF assembly, | ● Go to 'DPF service regeneration inspection'. |
