Description

Clamp cap type is used to manage tightening torque of intake hose at the factory.

When clamp cap is tightened by 0.5 ~ 0.7 kgf.m, the head of clamp cap is cut.

Diagnostic procedure

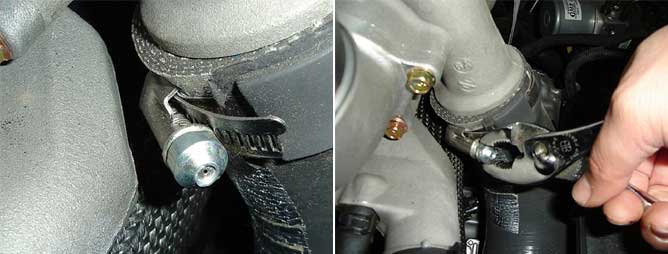

Take off the cap
1.

Using a pliers, Take off the cap.

☞ After it removed, there will be another (-) cap which you can use a (-) driver.

2.

Do NOT reuse the clamp cap which is removed.
