Connector Terminal | Specification | Remark | |
No | Description | ||
29 | IGNITION1(+) | High level of wake up voltage : 4.5V < V < 16.0V Low level of wake up voltage : V < 2.4V Max. current : I < 50mA |
|
25 | POS. BATTERY 1.(SOLENOID) | Over voltage range : 17.0 ± 0.5V Operating voltage range : 10.0 ± 0.5V ＜ V ＜ 16.0 ± 0.5V Low voltage range : 7.0 ± 0.5V ＜ V ＜ 9.5 ± 0.5V Max. current : I ＜ 25A Max. leakage current : I < 0.25mA |
|
1 | POS. BATTERY 2.(MOTOR) | Operating voltage range: 10.0 ± 0.5V ＜ V ＜ 16.0 ± 0.5V Rush current : I ＜ 110A Max. current : I ＜ 40A Max. leakage current : I ＜ 0.25mA |
|
38 | GROUND | Rated current : I ＜ 550mA Max. current: I ＜ 25A |
|
13 | PUMP MOTOR GROUND | Rush current : I ＜ 110A Max. current : I ＜ 40A |
|

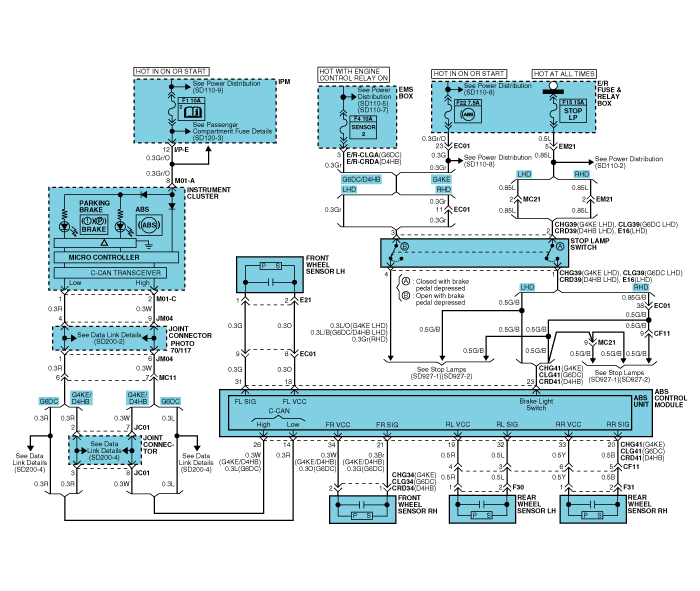

23 | BRAKE LIGHT SWITCH | Input voltage (Low) : V < 2V Input voltage (High) : V > 6V Max. Input current : I < 3mA (@12.8V) |
|
28 | SENSOR FRONT RIGHT OUTPUT | External pull up resistance :1 KΩ ＜ R Output duty :50 ± 20% |
|
14 | CAN BUS LINE(LOW) | Max. Input current : I ＜ 10mA |
|
26 | CAN BUS LINE(HIGH) | ||
18 | SENSOR FRONT LEFT POWER | Output voltage : V_BAT1 -0.6V ~ V_BAT1 -1.1V Output current : Max. 30mA |
|

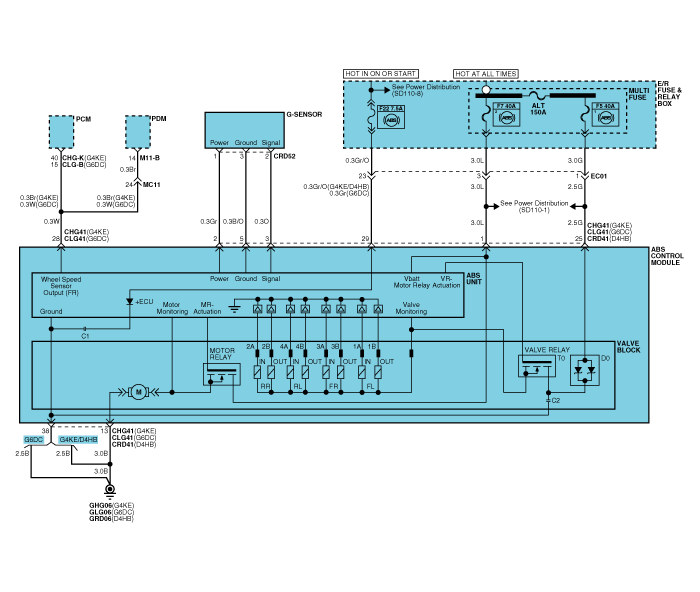

34 | SENSOR FRONT RIGHT POWER | ||
19 | SENSOR REAR LEFT POWER | ||
33 | SENSOR REAR RIGHT POWER | ||
31 | SENSOR FRONT LEFT SIGNAL | Input current Low : 5.9 ~ 8.4mA Input current High :11.8 ~ 16.8mA Frequency range :1 ~ 2,500Hz Input duty : 50 ± 10% | Typ. 7mA Typ. 14mA |
21 | SENSOR FRONT RIGHT SIGNAL | ||
32 | SENSOR REAR LEFT SIGNAL | ||
20 | SENSOR REAR RIGHT SIGNAL | ||
2 | G SENSOR POWER (4WD Only) | Max. Output current : I ＜ 50mA Max. Output voltage : 4.75V ≤ V ≤ 5.25V |
|
3 | G SENSOR SIGNAL (4WD Only) | Input voltage : 0V < V < 5V |
|
5 | G SENSOR GROUND (4WD Only) | Rated current : I ＜ 50mA |
|
