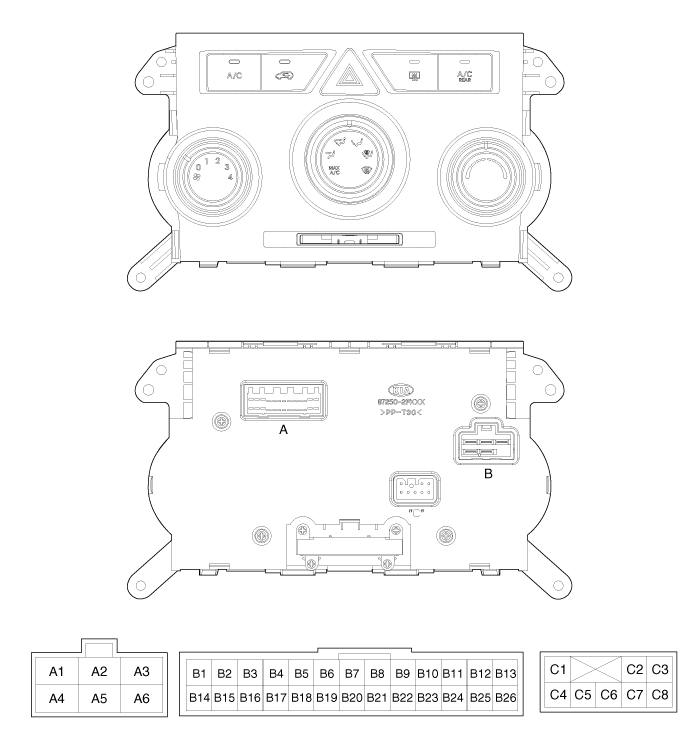

Connector | Pin | Function | Connector | Pin | Function |
Connector(A) | 1 | Tail Lamp (+)z | Connector(B) | 1 | GND |
2 | Battery (+) | 2 | Middle High | ||
3 | A/C Output Signal | 3 | Middle Low | ||
4 | A/C Select Signal | 4 | High | ||
5 | HTD (Rear Defor IND) | 5 | Low | ||
6 | Mode Actuator (VENT) | 6 | - | ||
7 | Mode Actuator (DEF) | Connector(C) | 1 | PTC Relay 2 | |
8 | Temp Actuator (COOL) | 2 | PTC Relay 3 | ||
9 | Temp Actuator (WARM) | 3 | Blower Select Signal (Low) | ||
10 | Intake Actuator (FRE) | 4 | PTC on Signal (Low) | ||
11 | Intake Actuator (REC) | 5 | - | ||
12 | Hazard Signal | 6 | - | ||
13 | Rheostat (-) | 7 | - | ||
14 | IG2 | 8 | - | ||
15 | V ref (5V) |
|
|
| |
16 | Rheo Detend |
|
|
| |
17 | Mode Actuator F/B |
|
|
| |
18 | Temp Actuator F/B |
|
|
| |
19 | Intake Actuator F/B |
|
|
| |
20 | Evaporator Sensor |
|
|
| |
21 | Blower Common Signal (-) |
|
|
| |
22 | Rr Defog S/W |
|
|
| |
23 | Rear Blower Comm. |
|
|
| |
24 | Rear Blower Relay ON |
|
|
| |
25 | Sensor GND |
|
|
| |
26 | GND |
|
|
|
