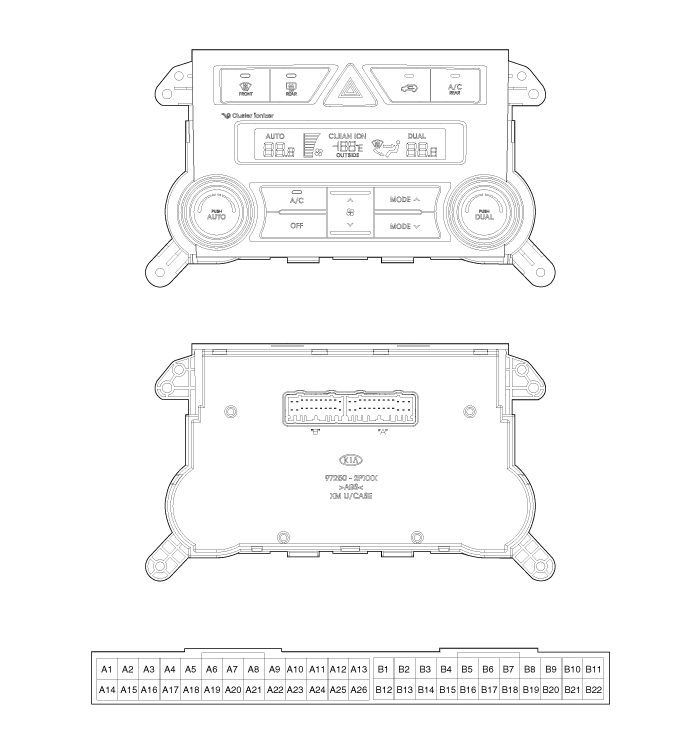

Connector | Pin | Function | Connector | Pin | Function |
Connector (A) | 1 | Tail Lamp | Connector (B) | 1 | Sensor REF (+5V) |
2 | Battery | 2 | Rear Blower Relay ON | ||
3 | A/C Output | 3 | Ambient Sensor (+) | ||
4 | A/C Select Signal | 4 | Rear Blower Common | ||
5 | Diagnosis (Ionizer) | 5 | Incar Sensor (+) | ||
6 | K-LINE | 6 | Evaporator Sensor (+) | ||
7 | Ion Signal | 7 | Water Temp Sensor (+) | ||
8 | Clear Signal | 8 | Speed Signal | ||
9 | HTD (Rear Defog IND) | 9 | FET (G) | ||
10 | Rear Defog Signal | 10 | FET (D) | ||
11 | Hazard Signal | 11 | Blower Motor (+) | ||
12 | Rheostat Detend | 12 | Sensor GND | ||
13 | Rheostat (-) | 13 | Temp Actuator DR (COOL) | ||
14 | IGN2 | 14 | Temp Actuator DR (WARM) | ||
15 | Blower Max Signal | 15 | DR Photo (-) | ||
16 | Temp Atuator PS (COOL) | 16 | PS Photo (-) | ||
17 | Temp Atuator PS (WARM) | 17 | Incar Mtor (-) | ||
18 | Temp Atuator PS F/B | 18 | Temp Actuator DR F/B | ||
19 | Mode Actuator (VENT) | 19 | Blower On Signal | ||
20 | Mode Actuator (DEF) | 20 | PTC ON Signal | ||
21 | Mode Actuator F/B | 21 | PTC RLY 2 | ||
22 | Intake Actuator (FRE) | 22 | PTC RL 3 | ||
23 | Intake Actuator (REC) |
|
|
| |
24 | Intake Actuator F/B |
|
|
| |
25 | GND |
|
|
| |
26 | GND |
|
|
|
