Anti-theft control data flow
The burglar alarm system is integrated with the keyless entry system. The keyless entry system allows you to lock and unlock the vehicle with the remote transmitter. When you push the LOCK button, all doors lock. When you push the UNLOCK button again, all doors unlock.
DOOR LOCK / UNLOCK and Trunk operations are performed with remocon
Keyless entry function is performed in a state that key in switch is eliminated from key cylinder
LOCK / UNLOCK and trunk signals are received from the transmitter and DOOR LOCK / UNLOCK and Trunk signals are output.
In case of tailgate, this operation is performed when pushing the button for 0.5s or more.
Transmission Distance : 30m or more from outside of the car
Registration procedure of the transmitter
In registration mode, it shall be possible to register up to Max 4EA.
At re-registration, data are registered newly after deleting the previous TX DATA
No. | Saved Code | Code to change | Changed Code |
1 | A | C | C (A is deleted) |
2 | A, B, C, D | E | E (A, B, C, D is deleted) |
3 | A, B | C, D, E | C, D, E |
4 | A, B | C, C, D | C |
For the registration procedures by using Hi-scan tool, refer to "TRANSMITTER CODE REGISTRATION".
Transmitter signal ＆ Receiver Spec
Transmission signal
Transmit relevant transmission DATA (Transmission frame) twice by pushing TX SW.
Only LOCK signal is output when pushing TX LOCK switch and UNLOCK switch at the same time.

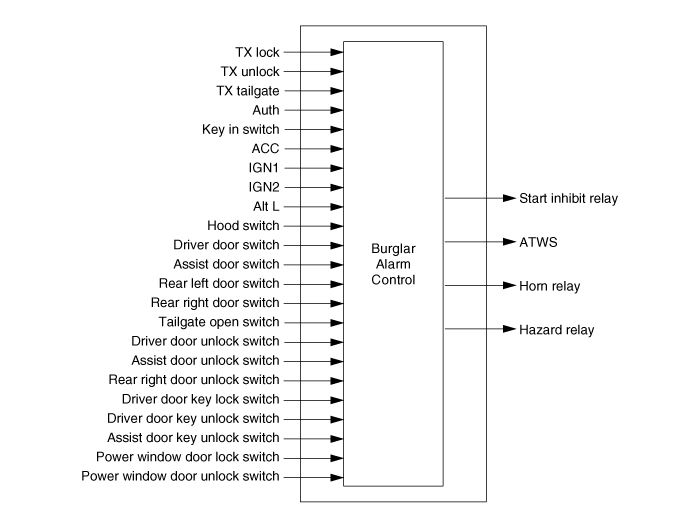

Anti-theft control data flow
DISARM
State | Description |
Initial Condition | ALARM |
Transition Condition | Any door open or tailgate open switch ON, and TX unlock input 3 seconds elapsed under IGN key all ON state (excluding China) 3 seconds elapsed under IGN key all ON & AltL ON state (excluding China) door lock failed within 5 seconds from TX lock input lock by lock lock input failed (mechanical key enabled) lock unlock input (mechanical key enabled) TX tailgate or SMK passive tailgate input AUTH (SMK Specification only) |
Action | DISARM state activated Horn relay, hazard relay, start Inhibit OFF 2 hazard relay inputs in 0.5 second cycle of ON/OFF (TX unlock input) |
State | Description |
Initial Condition | IGN key OUT and (Any door open or tailgate open switch ON) under DISARM activation |
Transition Condition | TX unlock input AUTH (SMK Specification only) |
Action | DISARM state maintained 2 hazard relay inputs in 0.5 second cycle of ON/OFF (TX unlock) |
State | Description |
Initial Condition | ARM WAIT |
Transition Condition | Any door open or Hood switch open or tailgate open switch ON At least a door is unlocked keyIn or ACC ON lock unlock input (mechanical key enabled) AUTH (SMK specification only) SMK passive tailgate input |
Action | DISARM state activated |
State | Description |
Initial Condition | Auto lock timer1 |
Transition Condition | Any door open or hood switch open or tailgate open switch ON key in or ACC ON lock by auto lock is failed lock by TX lock is failed lock by lock lock is failed (mechanical key enabled) AUTH (SMK speficiation only) |
Action | DISARM state activated |
State | Description |
Initial Condition | Autolock timer2 |
Transition Condition | Any door open or tailgate open switch ON key in or ACC ON lock by auto lock is failed lock by TX lock is failed lock by lock lock is failed (mechanical key enabled) AUTH (SMK Speficiation only) |
Action | DISARM state activated |
State | Description |
Initial Condition | ARM |
Transition Condition | IGN key all ON (excluding China) lock unlock input (mechanical key enabled) AUTH (SMK Speficiation only) |
Action | DISARM state activated |
State | Description |
Initial Condition | REARM |
Transition Condition | 30 seconds elapsed under IGN key all ON state (excluding China) 3 seconds elapsed under IGN key all ON & AltL ON (excluding China) lock by auto lock is failed lock by TX lock is failed (mechanical key enabled) lock by lock lock is failed (mechanical key enabled) TX tailgate unlock input AUTH (SMK Speficiation only) |
Action | DISARM state activated Start inhibit OFF |
State | Description |
Initial Condition | PREARM |
Transition Condition | TX unlock input with any door open or tailgate open switch ON KeyIn or ACC ON At least one of doors is unlocked with all entrances closed lock unlock input (mechanical key enabled) AUTH (SMK Speficiation only) |
Action | DISARM state activated 2 hazard relay inputs in 0.5 second cycle of ON/OFF (TX unlock) |
State | Description |
Initial Condition | Auto lock timer3 |
Transition Condition | Any door open key in or ACC ON Hood switch open lock by TX lock is failed lock by lock lock is failed (mechanical key enabled) lock by lock unlock is failed (mechanical key enabled) AUTH (SMK Specification only) |
Action | DISARM state activated |
ARM
State | Description |
Initial Condition | ARM |
Transition Condition | TX lock Input |
Action | ARM state maintained Hazard relay output for a second |
State | Description |
Initial Condition | ARM WAIT |
Transition Condition | After halting ARM WAIT TIMER |
Action | ARM state activated |
ALARM
State | Description |
Initial Condition | ARM |
Transition Condition | Any door open or hood switch open or tailgate open switch ON Or either of key in or ACC is ON (China) |
Action | ALARM state activated Starting is prevented by turning ON start inhibit output EC, Middle East, China, Australia :: Turn ON horn relay Alarm for 27 seconds (±2) Hazard relay output is operated as same with horn relay. (all region) |
State | Description |
Initial Condition | REARM |
Transition Condition | Any door open or hood switch open or tailgate open switch ON |
Action | ALARM state activated EC, Middle East, China, Australia : : Turn On horn relay Alarm for 27 seconds.(±2). Hazard relay output is operated as same with horn relay. (all regions) |
ARM WAIT
State | Description |
Initial Condition | ARM WAIT |
Transition Condition | TX lock Input |
Action | ARM WAIT state maintained 1 hazard relay output for a second |
State | Description |
Initial Condition | DISARM state and IGN key out and all entrances closed |
Transition Condition | Successfully locked by TX lock Successfully locked by lock Input (mechanical key enabled) Tailgate open switch OFF and (Any door open → All door closed) with door locked or All door closed and (tailgate open switch ON→OFF) (mechanical key enabled) |
Action | ARM WAIT state activated 1 Hazard relay output for a second (excluding Mechanical lock) Starting ARMWAIT TIMER |
State | Description |
Initial Condition | IGN key out and and all entrances closed with ALARM state activated |
Transition Condition | Successfully locked by TX lock Successfully locked by mechanical lock Input (mechanical key enabled) |
Action | ARM WAIT state activated Horn relay, start inhibit output OFF 1 Hazard relay output for a second (excluding mechanical lock) Starting ARMWAIT TIMER |
State | Description |
Initial Condition | Auto lock timer1 |
Transition Condition | Successfully locked by Autolock Successfully locked by TX lock Successfully locked by mechanical lock Input (mechanical key enabled) |
Action | ARM WAIT state activated 1 Hazard relay output for a second (excluding mechanical lock) Starting ARMWAIT TIMER |
State | Description |
Initial Condition | PREARM |
Transition Condition | All entrances closed and all DOORS locked |
Action | ARM WAIT state activated 1 Hazard relay output for a second (excluding mechanical lock) Starting ARMWAIT TIMER. |
State | Description |
Initial Condition | REARM |
Transition Condition | Successfully locked by TX lock Successfully locked by mechanical lock Input (mechanical key enabled) |
Action | ARM WAIT state activated 1 Hazard relay output for a second (excluding mechanical lock) Start inhibit OFF Starting ARMWAIT TIMER |
State | Description |
Initial Condition | Autolock timer3 |
Transition Condition | Successfully locked by TX lock Successfully locked by mechanical lock Input (mechanical key enabled) |
Action | ARM WAIT state activated 1 Hazard relay output for a second (excluding mechanical lock) Starting ARMWAIT TIMER |
REARM
State | Description |
Initial Condition | ALARM |
Transition Condition | All entrances closed and ALARM pattern completed |
Action | REARM state activated |
Auto-lock timer 1
State | Description |
Initial Condition | ARM |
Transition Condition | TX unlock Input |
Action | Auto-lock timer1 state activated 2 Hazard relay outputs in 0.5 second cycle of ON/OFF Starting autolock timer1 |
State | Description |
Initial Condition | Auto-lock timer1 |
Transition Condition | Autolock timer1 completed TX unlock Input |
Action | Auto-lock timer1 state maintained CASE1: Autolock timer1 completed → Attempting autolock CASE2: TX unock → 2 Hazard relay outputs in 0.5 second cycle of ON/OFF Re-starting autolock timer1 |
State | Description |
Initial Condition | ARM WAIT |
Transition Condition | TX unlock Input |
Action | Auto-lock timer1 state activated 2 Hazard relay outputs in 0.5 second cycle of ON/OFF Starting Autolock timer1 |
State | Description |
Initial Condition | DISARM state, IGN key out and all entrances closed |
Transition Condition | TX unlock Input |
Action | Auto-lock timer1 state activated 2 Hazard relay outputs in 0.5 second cycle of ON/OFF Re-starting Autolock timer1 |
State | Description |
Initial Condition | ALARM state and All entrances closed |
Transition Condition | TX unlock Input |
Action | Auto-lock timer1 state activated Horn relay, start inhibit output OFF 2 Hazard relay outputs in 0.5 second cycle of ON/OFF Starting Autolock timer1 |
State | Description |
Initial Condition | REARM |
Transition Condition | TX unlock Input |
Action | Auto-lock timer1 state activated start inhibit OFF 2 Hazard relay outputs in 0.5 second cycle of ON/OFF Starting Autolock timer1 |
State | Description |
Initial Condition | Autolock timer3 |
Transition Condition | TX unlock Input |
Action | Autolock timer1 state activated 2 Hazard relay outputs in 0.5 second cycle of ON/OFF Starting Autolock timer1 |
Auto-lock timer 2
State | Description |
Initial Condition | Auto-lock timer2 |
Transition Condition | Autolock timer2 completed TX unlock Input |
Action | Auto-lock timer2 Stated maintatined CASE1: Autolock timer2 completed → attempting Autolock CASE2: TX unlock Input → 2 Hazard relay outputs in 0.5 second cycle of ON/OFF Re-starting Autolock timer2 |
State | Description |
Initial Condition | DISARM state, IGN KEY OUT, (All door closed & tailgate open switch OFF), and hood switch open |
Transition Condition | TX unlock Input |
Action | Auto-lock timer2 state activated 2 Hazard relay outputs in 0.5 second cycle of ON/OFF Re-starting Autolock timer2 |
State | Description |
Initial Condition | ALARM state, (All door closed & tailgate open switch OFF) and Hood switch open |
Transition Condition | TX unlock Input |
Action | Auto-lock timer2 state activated Horn relay, start inhibit output OFF 2 Hazard relay outputs in 0.5 second cycle of ON/OFF Re-starting Autolock timer2 |
State | Description |
Initial Condition | PREARM State, (All door closed & tailgate open switch OFF) and hood switch open |
Transition Condition | TX unlock Input |
Action | Auto-lock timer2 state activated 2 Hazard relay outputs in 0.5 second cycle of ON/OFF Starting Autolock timer2 |
Auto-lock timer 3
State | Description |
Initial Condition | ARM |
Transition Condition | TX tailgate Input or SMK passive tailgate Input |
Action | Autolock timer3 state activated START Autolock timer3 2 hazard relay outputs in 0.5 second cycle of ON/OFF |
State | Description |
Initial Condition | Autolock timer3 |
Transition Condition | TX tailgate Input |
Action | Autolock timer3 state maintained Restart Autolock timer3 |
State | Description |
Initial Condition | ARMWAIT |
Transition Condition | TX tailgate Input |
Action | Autolock timer3 state activated Start Autolock timer3 2 hazard relay outputs in 0.5 second cycle of ON/OFF |
If hazard lamp output is not compatible with“Tailgate release function”on activating Autolock timer3 by TX tailgate in ARM and ARMWAIT, Hazard lamp output control by tailgate release function is the priority.
PREARM
State | Description |
Initial Condition | Auto-lock timer2 state |
Transition Condition | Successfully locked by Autolock Successfully locked by TX lock Successfully locked by mechanical lock Input (mechanical key enabled) |
Action | PREARM state activated |
State | Description |
Initial Condition | DISARM state & IGN key out |
Transition Condition | Sucessfully locked by TX lock, with any door open or hood switch open or tailgate open switch ON Sucessfully locked by mechanical lock Input with any door open or hood switch open or tailgate open switch ON.(mechanical key enabled) In hood switch open state (Mechanical Key Enabled), (Any door open → all doors closed) and tailgate open switch OFF with all doors locked or tailgate open switch ON → OFF with all doors closed. |
Action | PREARM state activated |
State | Description |
Initial Condition | IGN key out and (Any door open or hood switch open or tailgate open switch ON) in ALARM state |
Transition Condition | Sucessfully locked by TX lock Sucessfully locked by mechanical lock Input (mechanical key enabled) |
Action | PREARM state activated Horn relay, hazard relay, start inhibit Ouput OFF |
State | Description |
Initial Condition | Auto-lock timer3 |
Transition Condition | Autolocktimer3 is expired Tailgate open switch ON |
Action | PREARM state activated |
RESET
State | Description |
Initial Condition | ALARM, REARM |
Transition Condition | Battery removal and replacement |
Action | Start inhibit ON, 3 horn relay Alarm outputs (EC, Middle East, China,Australia 1 output) Starting from ALARM state |
State | Description |
Initial Condition | ARM |
Transition Condition | Removing battery and replacing it |
Action | Starting from ALARM State |
State | Description |
Initial Condition | Excluding ARM, ALARM, REARM |
Transition Condition | Removing battery and replacing it |
Action | Starting from DISARM State |
