1.
Remove the door scuff trim (A).
[Front]
[Rear]
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.
Remove the door scuff trim (A).
Installation is the reverse of removal.
Replace any damage clips.
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.
After loosening the screw, then remove the front pillar trim (A).
Installation is the reverse of removal.
Replace any damage clips.
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.
Remove the front door scuff trim.
Remove the hood latch release handle.
After loosening the mounting flange (B), then remove the cowl side trim (A).
Installation is the reverse of removal.
Replace any damage clips.
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.
Remove the front seat belt lower anchor.
Remove the front door scuff trim and rear door scuff trim.
Remove the center lower pillar trim (A).
Disconnect the cap, loosen the mounting screw.
Remove the center upper pillar trim (B).
Installation is the reverse of removal.
Replace any damage clips.
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.
Remove the rear door scuff trim.
After loosening the mounting screws, then remove the transverse trim (A).
Remove the rear seat belt lower anchor (A).
After loosening the mounting screws, then remove the luggage side trim (B).
Disconnect the cap, loosen the mounting bolts.
Remove the pillar trim (A).
After loosening the mounting bolts, then remove the rear pillar trim (A).
Installation is the reverse of removal.
Replace any damage clips.
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.
Remove the secondary seat.
Remove the third seat.
Remove the secondary seat belt lower anchor.
Remove the third seat belt lower anchor.
Remove the partition trim.
Remove the transverse trim.
After loosening the mounting screws, then remove the luggage side trim.
Installation is the reverse of removal.
Replace any damage clips.

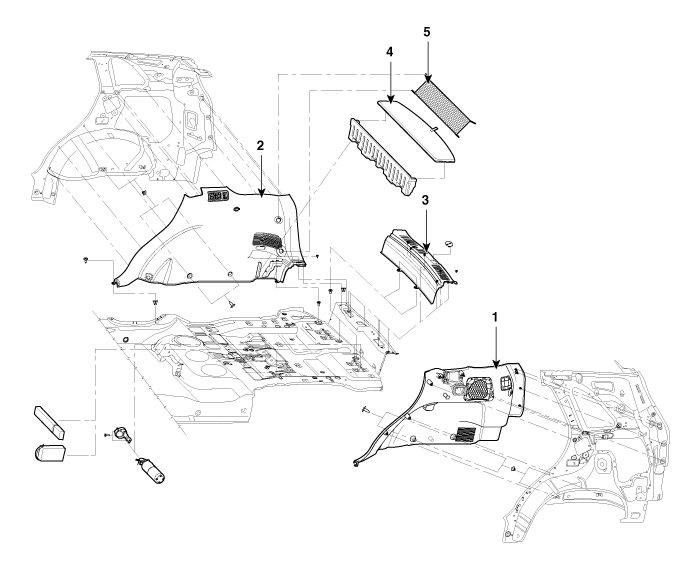

1. Luggage side trim (LH) 2. Luggage side trim (RH) 3. Transverse trim | 4. Luggage floor box 5. Luggage net |
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.
Remove the secondary seat.
Remove the secondary seat belt lower anchor.
Remove the luggage floor box.
Remove the transverse trim.
After loosening the mounting screws, then remove the luggage side trim.
Installation is the reverse of removal.
Replace any damage clips.

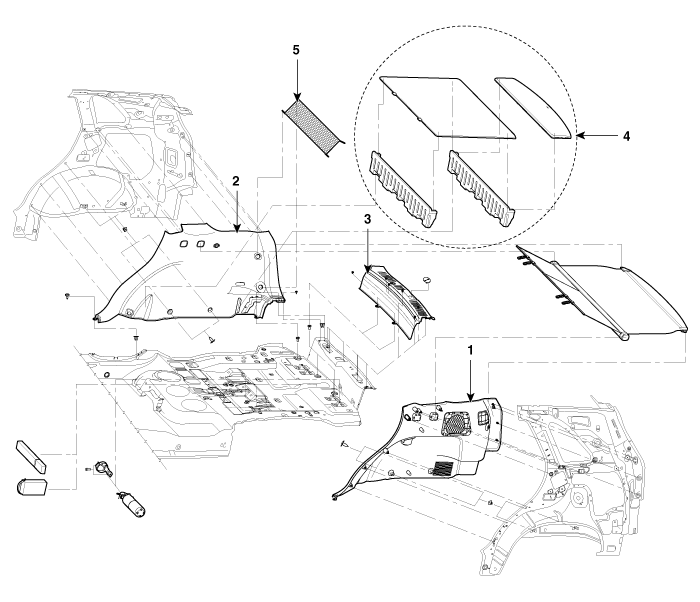

1. Luggage side trim (LH) 2. Luggage side trim (RH) 3. Transverse trim | 4. Luggage floor box partition assembly 5. Luggage net |
