1.
Disconnect the seat track cover, then loosen the mounting bolts.
Tightening torque :
44.1~ 58.8 N.m (4.5 ~ 6.0 Kgf.m, 32.5~ 43.4 lb-ft)
Disconnect the seat track cover, then loosen the mounting bolts.
Tightening torque :
44.1~ 58.8 N.m (4.5 ~ 6.0 Kgf.m, 32.5~ 43.4 lb-ft)
Folding the seat.
Loosen the mounting bolt and seat belt buckle mounting bolt, then remove the seat assembly (A).
Disconnect the connector (A), then remove the seat assembly.
Installation is the reverse of removal.
Seat mounting bolt and nut installation procedure.
Tighten temporarily in the order of nut and bolt on the front of recliner hinge installation part.
After completely tightening completely the bolt on the back of the recliner hinge installaion part, tighten the bolt on the front of it completely.
Setting down the seat cushion, tighten the mounting bolt of the cushion frame hinge.
Check if reclining the seat and folding seat back operate smoothly.
Push the lock pin (B), and then remove the headrest (A).
When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
After loosening the mounting bolt, then remove the armrest (A).
Push the hook (A), remove the headrest guide (B).
Using a screwdriver or remover, remove the armrest cover (A).
Loosen the cover mounting screws (A).
Remove the cover (A) by using a flat-tip screwdriver.
Using a screwdriver or remover, remove the cover (A).
When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Remove the seat back panel (A).
Remove the cap.
Loosen the screw and then recliner cover (A).
Using a screwdriver or remover, remove the rear center seat belt upper anchor cover (A).
Disconnect the protector
Remove the headrest guide (A).
After removing the hogring clips (B) on the front of seat cushion and remove the seat cushion cover (A).
Installation is the reverse of removal.
To prevent wrinkles, make sure the material is stretched evenly over the cover (B) before securing the hogring clips (A).
Replace the hogring clips with new ones using special tool (C).
Remove the seat cushion.
Loosen the recliner lever mounting screw and then disconnect the lever (A).
Disconnect the recliner cable (A).
After loosen the mounting bolts, then remove the seat back frame (A).
Installation is the reverse of removal.
Remove the seat back cushion cover.
After loosening the mounting bolt, then remove the back folding hinge cover (A).
After loosening the mounting bolt, then remove the bracket (A).
After loosening the mounting screw, then remove the recliner cover (A).
When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Disconnect the heated seat connector (A) mounting clip.
Disconnect the protector (B), and then remove the seat cushion (A).
After removing the hogring clips (B) on the front of seat cushion and remove the seat cushion cover (A).
Installation is the reverse of removal.
To prevent wrinkles, make sure the material is stretched evenly over the cover (B) before securing the hogring clips (A).
Replace the hogring clips with new ones using special tool (C).
Remove the seat cushion cover
Cut the heater (A) attached to the sponge (B), as shown in the picture.
Take care the slab sponge not to be damaged.
Detach the paper from the reverse side of heater assembly.
Install the seat heater to main sponge.
Take care the seat heater shape change.
Put the seat heater on the seat cushion exactly.
Installation the seat cushion cover.
Be careful not to damage the seat warmer line, when installing the hogring clips.
To prevent wrinkles, make sure the material is stretched evenly over the cover (B) before securing the hogring clips (A).
Replace the hogring clips with new ones using special tool (C).
Remove the seat back cover.
Remove the recliner cover.
Loosen the seat cushion mounting bolt (A).
Remove the seat mounting cover (A).
Loosen the mounting screw and then remove the recliner cover (A).
Remove the seat mounting cover (A).
After loosening the mounting screw, then remove the recliner cover (A).
After loosening the mounting bolt, then remove the seat cushion frame (A).
Installation is the reverse of removal.
Disconnect the seat heater connector (A).
Loosen the seat mounting nut.
Tightening torque :
39.2~ 53.9 N.m (4.0 ~ 5.5 Kgf.m, 28.9 ~ 39.8 lb-ft)
After loosening the mounting bolts, then remove the seat assembly (A).
Tightening torque :
44.1 ~ 58.8 N.m (4.5 ~ 6.0 Kgf.m, 32.5 ~ 43.4 lb-ft)
Installation is the reverse of removal.
Disconnect the mounting clips (B), and then disconnect the cover (A).
After loosening the mounting screw, then remove the recliner cover (A).
When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Remove the cover (A).
Loosen the seat cushion mounting bolt (A).
After loosening the mounting nuts, then remove the seat cushion (A).
Disconnect the seat heater wirering mounting clip (A).
Disconnect the protector (A), and then remove the seat cushion.
After removing the hogring clips (B) on the front of seat cushion and remove the seat cushion cover (A).
Installation is the reverse of removal.
To prevent wrinkles, make sure the material is stretched evenly over the cover (B) before securing the hogring clips (A).
Replace the hogring clips with new ones using special tool (C).
Remove the seat cushion cover.
Cut the heater (B) attached to the sponge (A), as shown in the picture.
Take care the slab sponge no to be damaged.
Detach the paper from the reverse side of heater assembly.
Install the seat heater to main sponge.
Take care the seat heater shape change.
Put the seat heater on the seat cushion exactly.
Installation the seat cushion cover.
Be careful not to damage the seat warmer line, when installing the hogring clips.
To prevent wrinkles, make sure the material is stretched evenly over the cover (B) before securing the hogring clips (A).
Replace the hogring clips with new ones using special tool (C).

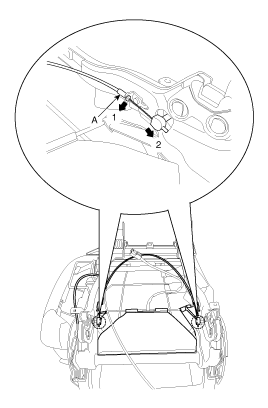

Disconnect the recliner cable (A).
Disconnect the cap.
After loosening the mounting screw, then remove the recliner cover (A).
Using a screwdriver.
Push the inner hook, remove the cover (A).
Remove the seat back panel (A).
Disconnect the protector (A).

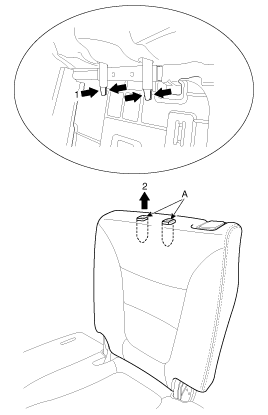

Push the lock pin, remove the headrest (A).
Remove the headrest guide (A).
After removing the hogring clips (B) on the front of seat cushion and remove the seat cushion cover (A).
Installation is the reverse of removal.
To prevent wrinkles, make sure the material is stretched evenly over the cover (B) before securing the hogring clips (A).
Replace the hogring clips with new ones using special tool (C).
Remove the seat back cover.
After loosening the mounting screws, then disconnect the lever (A).

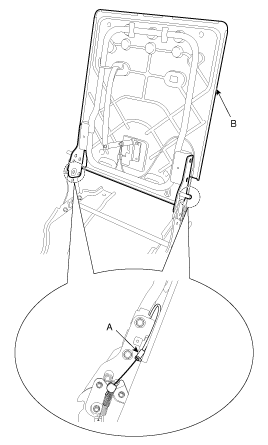

Disconnect the recliner cable (A).
Loosen the mounting bolts and then remove the seat back frame (B).
Installation is the reverse of removal.
Remove the partition trim.
Loosen the mount bolts.
Tightening torque :
44.1~58.8N.m (4.5 ~ 6.0Kgf.m, 32.5~43.4lb-ft)
Disconnect the cap.
After loosening the mounting bolts, then remove the third seat assembly (A).
Tightening torque :
44.1~ 58.8N.m (4.5 ~ 6.0Kgf.m, 32.5~43.4lb-ft)
Installation is the reverse of removal.
Loosen the bolt.
Loosen the bolt and then remove the seat cushion (A).
Disconnect the protector (A).
Disconnect the protector (A) and then remove the seat cushion cover.
After removing the hogring clips (B) on the front of seat cushion and remove the seat cushion cover (A).
Installation is the reverse of removal.
To prevent wrinkles, make sure the material is stretched evenly over the cover (B) before securing the hogring clips (A).
Replace the hogring clips with new ones using special tool (C).

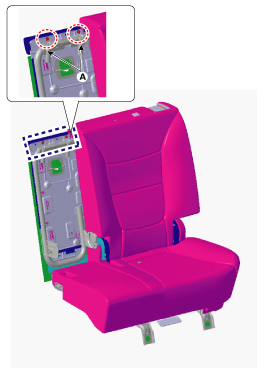

Using the screw driver, remove the cover (A).
Open the zipper (A).
After loosening the mounting screws, then remove the panel (A).
Disconnect the protector (A).

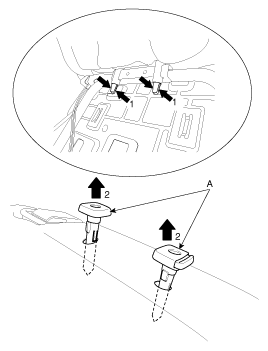

Push the hook, remove the headrest guide (A).
After removing the hogring clips (B) on the front of seat cushion and remove the seat cushion cover (A).
Installation is the reverse of removal.
To prevent wrinkles, make sure the material is stretched evenly over the cover (B) before securing the hogring clips (A).
Replace the hogring clips with new ones using special tool (C).
Remove the seat cushion.
Remove the seat back.

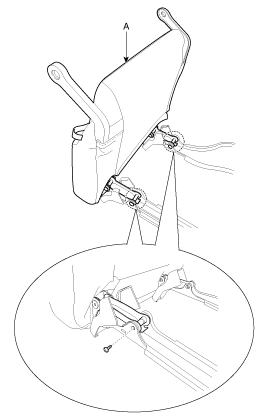

After loosening the mounting screw, then remove the cover (A).

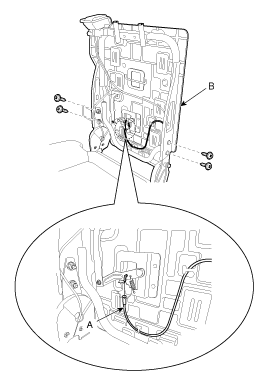

Disconnect the cable (A).
After loosening the recliner mounting bolts, then remove the seat back frame (B).
Installation is the reverse of removal.
