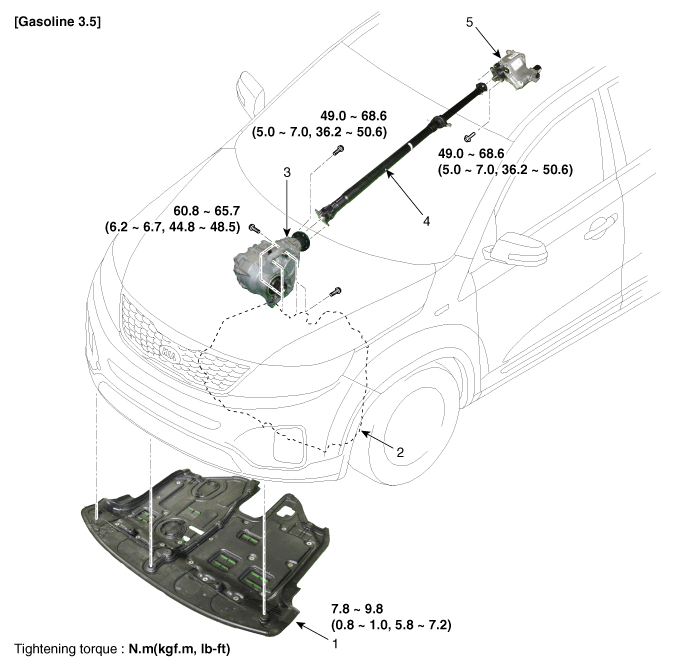

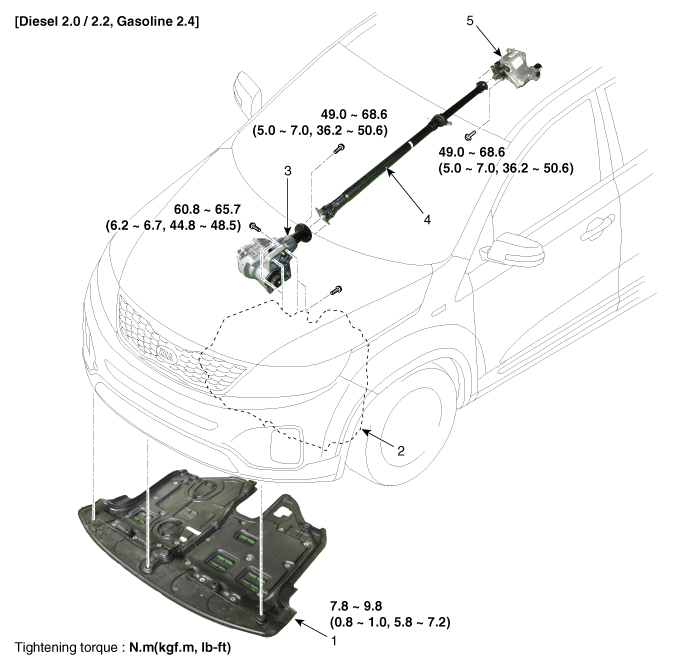

Components Location

1.Under cover

2. Transaxle Assembly

3. Transfer assembly

4. Propeller shaft

5. Coupling assembly

1.Under cover

2. Transaxle Assembly

3. Transfer assembly

4. Propeller shaft

5. Coupling assembly
