Adjustment
1.

Disconnect the negative (-) battery cable.

2.

Remove the glove box housing. (Refer to Body (Interior and Exterior) - "Glove Box Housing")

3.

Disconnect the connector (A).

4.

Remove the bracket (B) and receiver (C) as loosen the nut (A-1ea).

Tightening torque :

3.9 ~ 5.9N.m (0.4 ~ 0.6kgf.m, 2.9 ~ 4.3lb-ft)

5.

Install in the reverse order of removal.

6.

Re-connect battery and turn Ignition on.

7.

After replacing the receiver, learn by using self-diagnosis device(GDS).

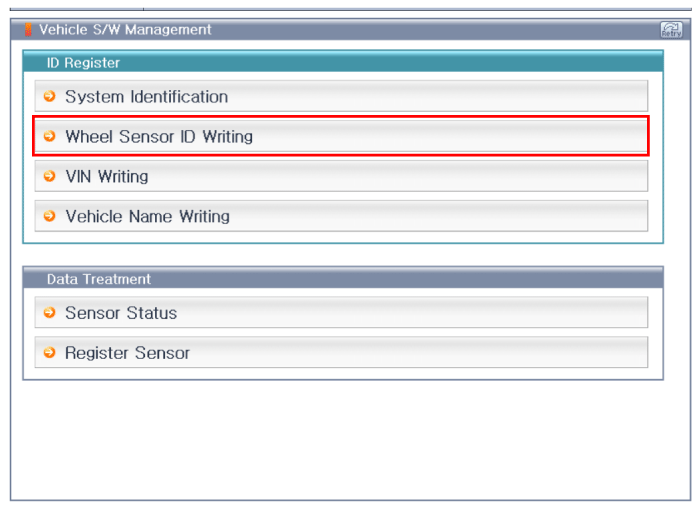

[Wheel Sensor ID Writing (Wireless) initialization]

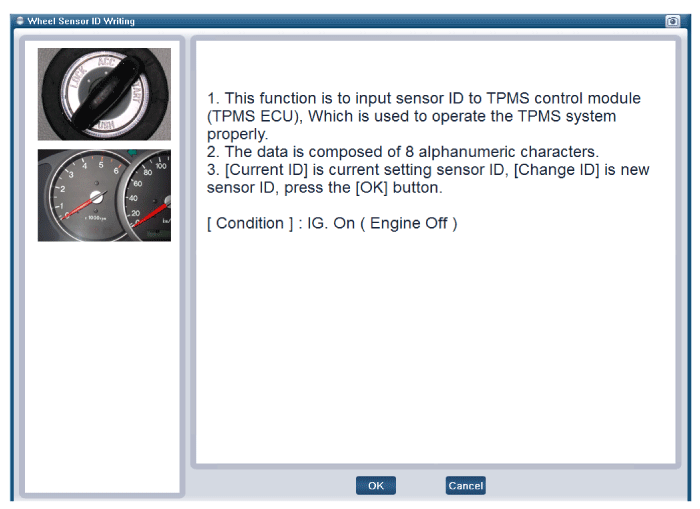

[Wheel Sensor ID Writing (Wireless) 1]
[Wheel Sensor ID Writing (Wireless) 2]
Diagnosis procedure by using diagnostic device

As manual for diagnosis methods by using diagnosis device, the main contents are as follows:

1.

Connect self-diagnosis connector(16pins) located in the lower of driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.

2.

Select the "vehicle model" and "TPMS" on GDS vehicle selection screen, then select OK.

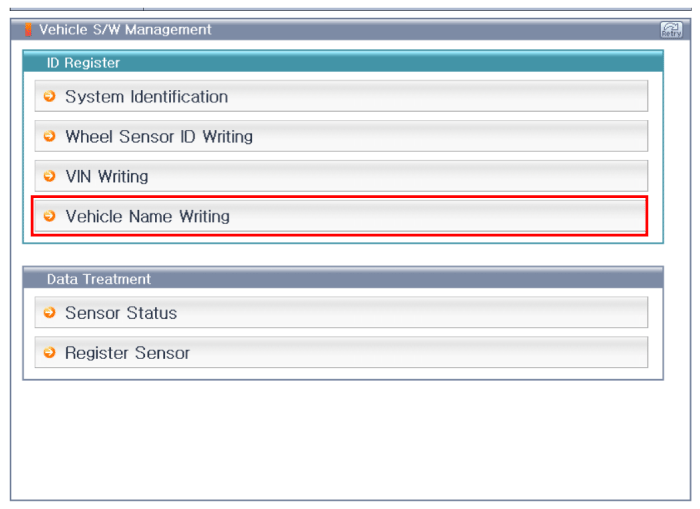

[Vehicle name input initialization]

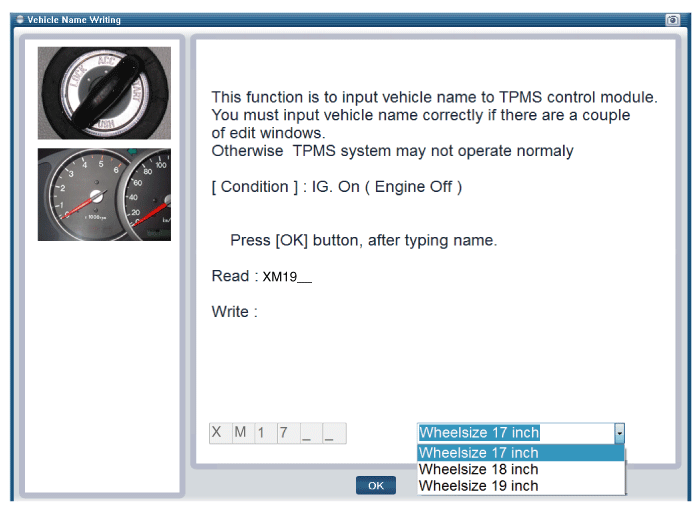

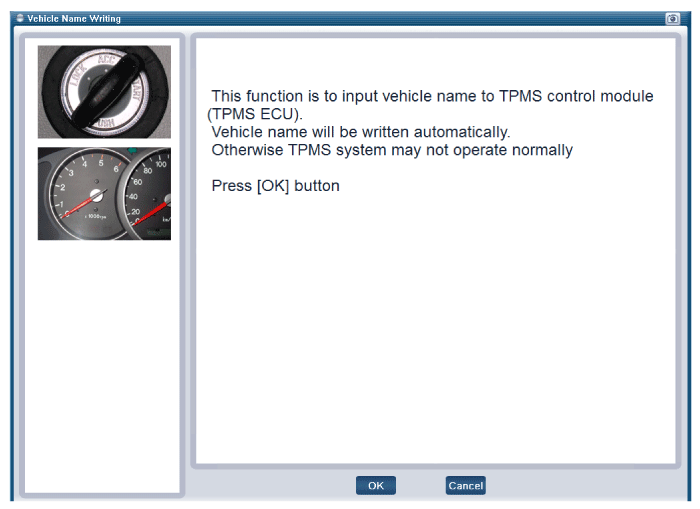

[Vehicle Name Writing 1]

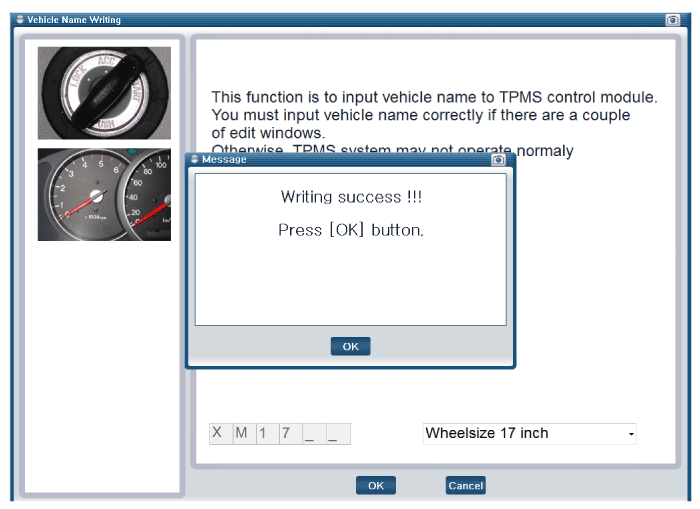

[Vehicle Name Writing 2]
[Vehicle Name Writing 3]
[VIN input initialization]

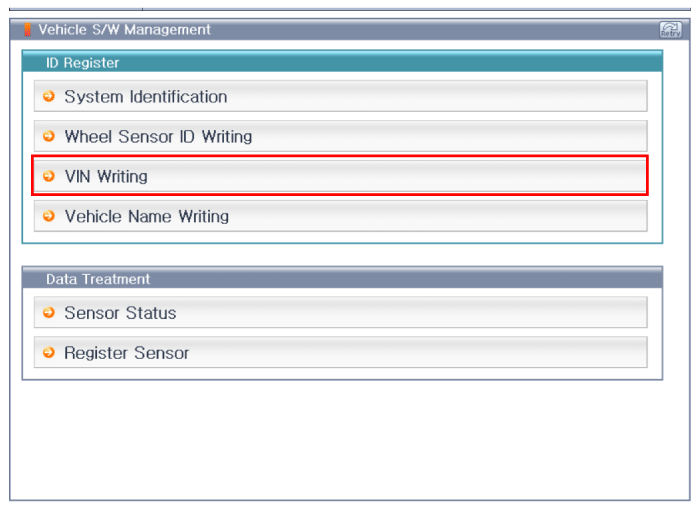

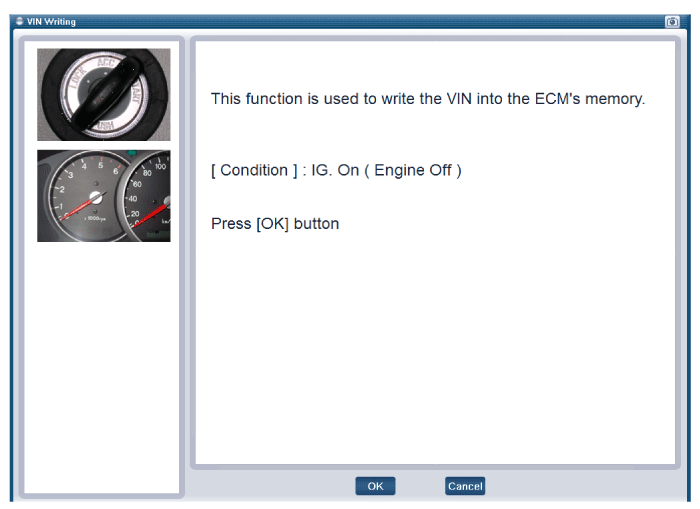

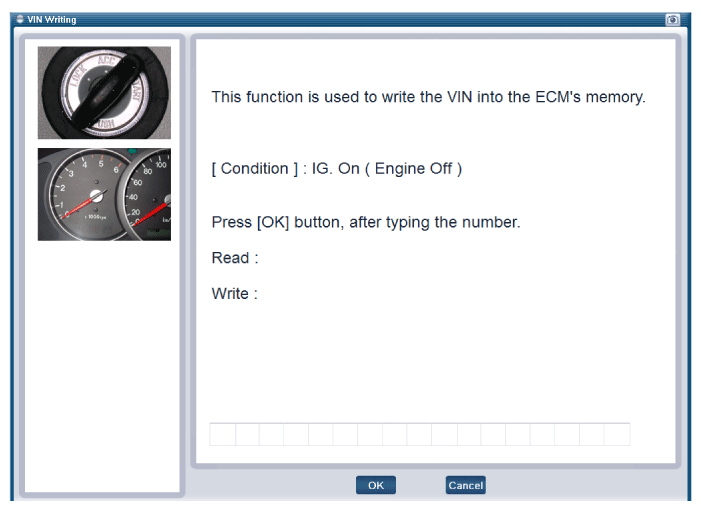

[VIN Writing 1]

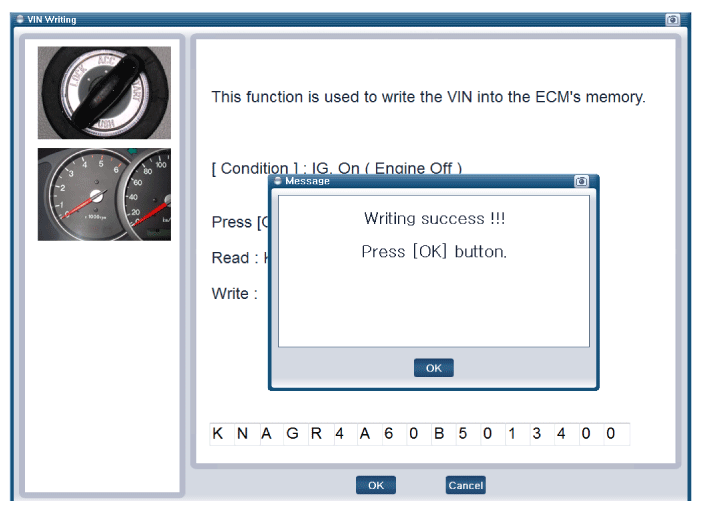

[VIN Writing 2]
[VIN Writing 3]
