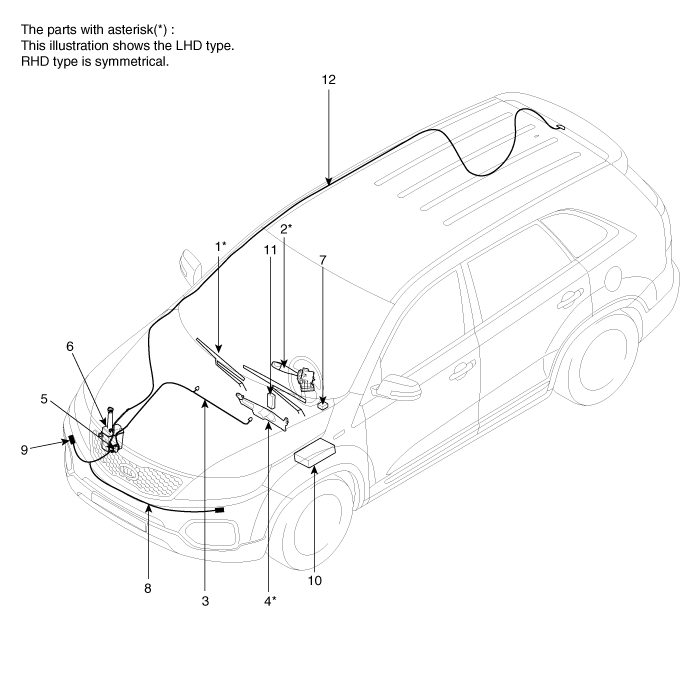

1. Windshield wiper arm & blade

2. Wiper & washer switch

3. Windshield washer hose

4. Windshield wiper motor & linkage

5. Washer motor

6. Washer reservoir

7. Head lamp washer switch (Crash pad side garnish)

8. Head lamp washer hose

9. Head lamp washer nozzle

10. Front wiper relay (Engine room relay box)

11. Rear wiper relay, Head lamp washer relay

(ICM relay box)

12. Rear washer hose & nozzle
