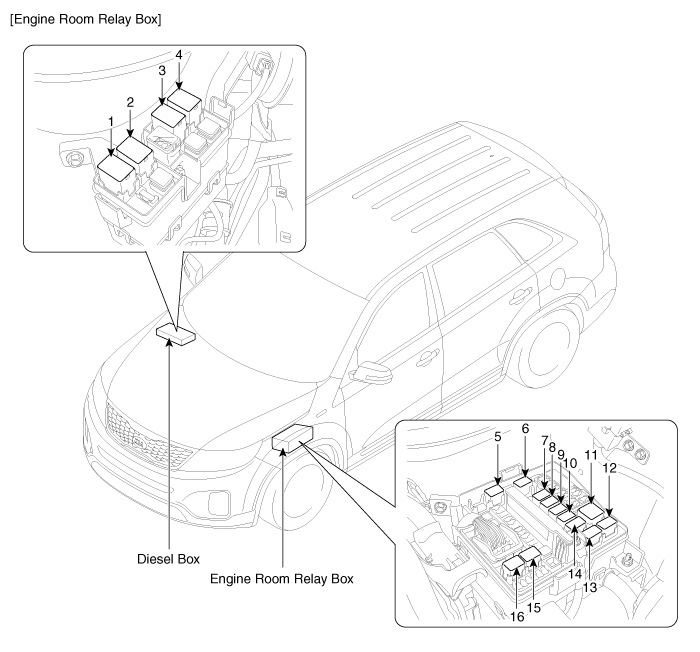

Component Location

1. Fuel filter heater relay

2. PTC heater relay #1

3. PTC heater relay #2

4. PTC heater relay #3

5. Start relay #1

6. Windshied deicer relay

7. Wiper relay

8. Condenser fan low relay

9. B/Alarm relay

10. Head lamp RH relay

11. Condenser fan hi relay

12. Rear glass defogger relay

13. IGN2 relay

14. IGN1 relay

15. Blower relay

16. Horn relay

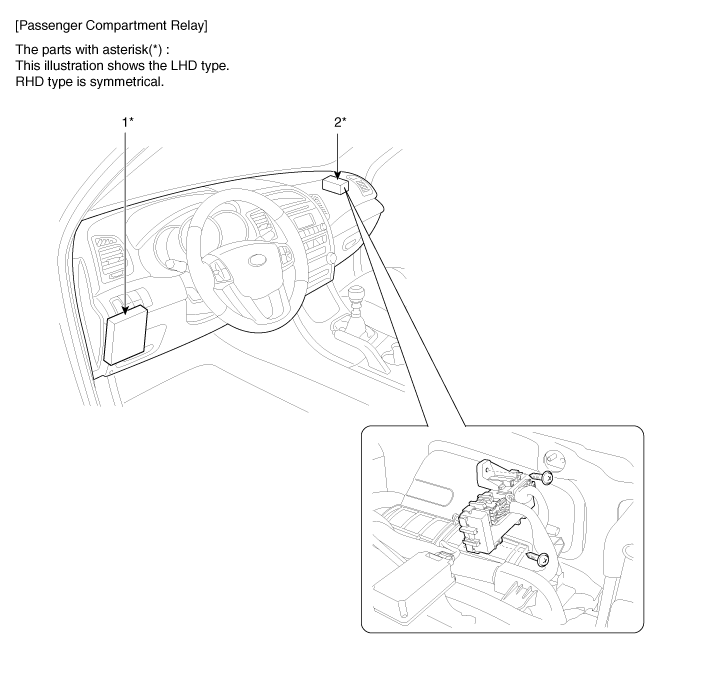

1. IPM

2. Rear wiper relay, Seat heater relay, Head lamp washer relay, Rear A/C relay (Built-in ICM relay box)
