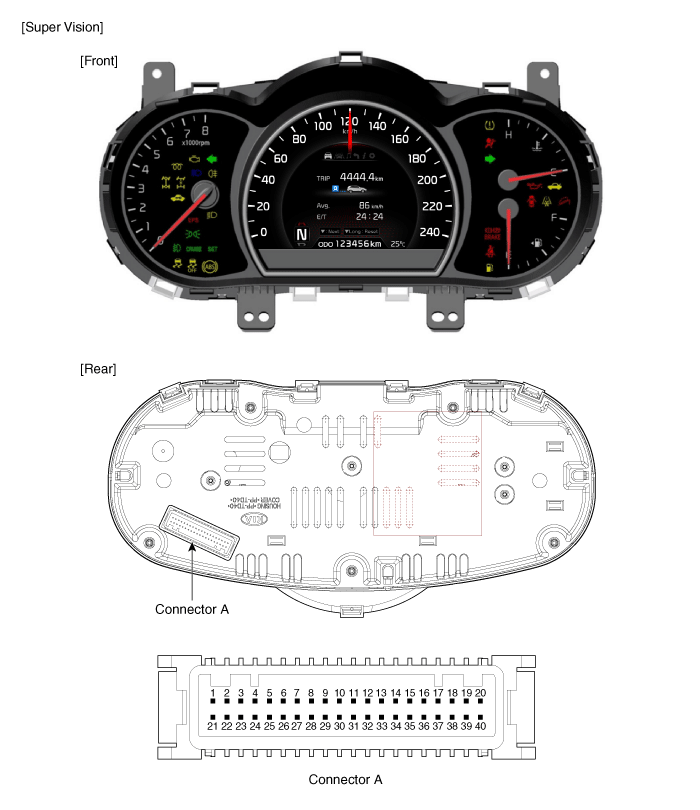

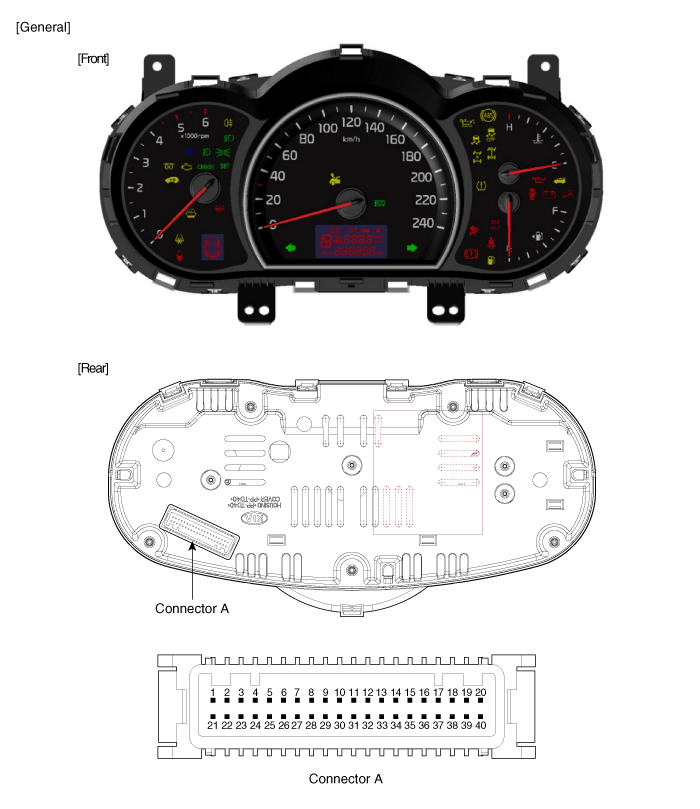

1

Air bag

21

Battery

2

P (AT)

22

IGN 1

3

R (AT)

23

Illumination (+)

4

N (AT)

24

Trip/Reset switch

5

D (AT)

25

Signal GND

6

Detent output

26

Signal GND

7

Fuel input

27

Fuel GND

8

-

28

Fuel warning

9

Water separator sensor input

29

-

10

-

30

-

11

Washer input

31

4P output

12

Rheostat up

32

-

13

Rheostat down

33

C CAN high

14

Steering heat

34

C CAN low

15

Cruise (+) switch

35

-

16

Active ECO

36

M CAN high

17

Oil input

37

M CAN low

18

Alternator

38

-

19

Oil level

39

Rheostat output

20

Immobilizer

40

GND
