Component Location

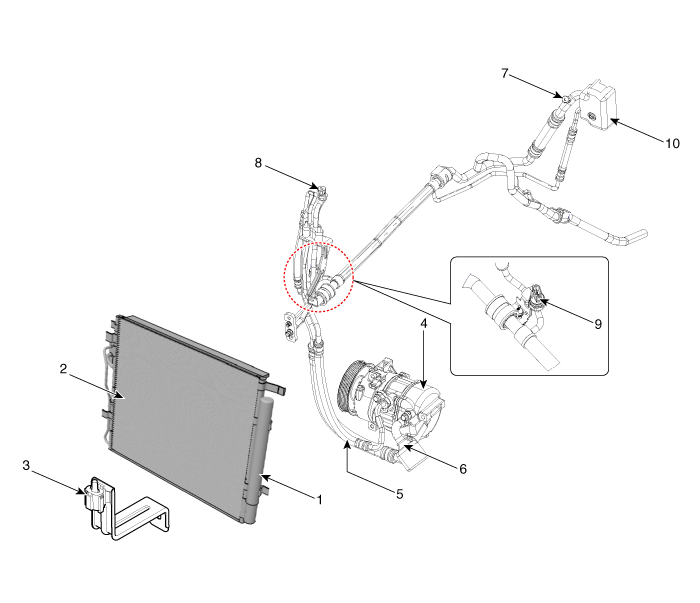

[Engine Room]

1. Receiver-drier

2. Condenser

3. Ambient temperature Sensor

4. Compressor

5. Discharge Hose

6. Suction & Liquid Tube Assembly

7. Service Port (Low Pressure)

8. Service Port (High Pressure)

9. A/C Pressure Transducer

10. Expansion Valve

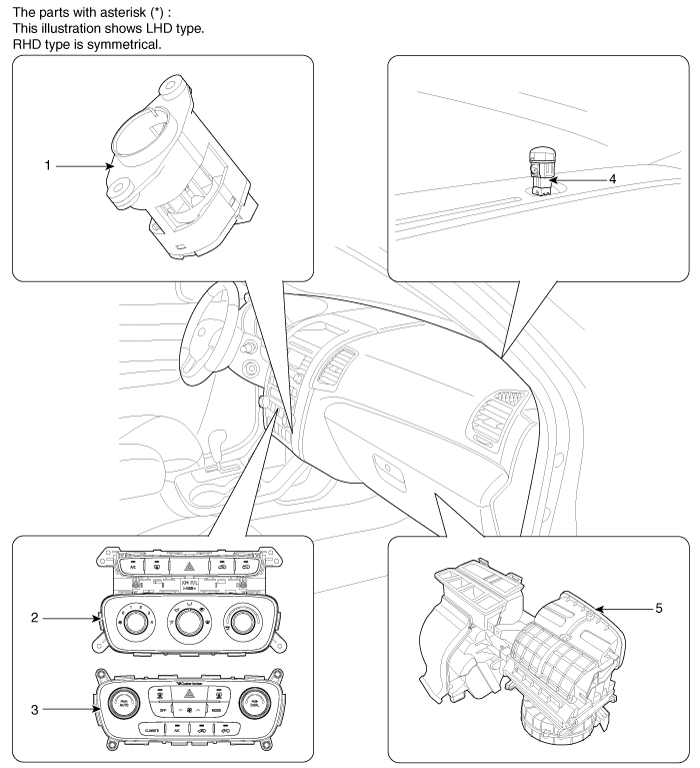

[Interior]

1. In-car sensor

2. Heater & A/C Control Unit (Manual)

3. Heater & A/C Control Unit (DATC)

4. Photo Sensor

5. Heater & Blower Unit
