2.
Remove the extension cable (A).

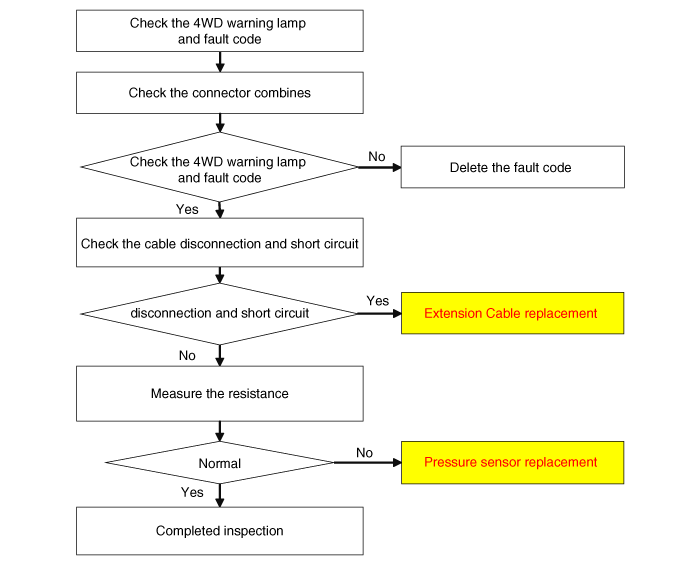

If you have trouble code related to the pressure sensor check pressure sensor according to the inspection process.
Turn ignition switch OFF.
Disconnect the pressure sensor connector.
Measure resistance between sensor terminal and terminal.
Check the measured resistance. (Refer to table)
Terminal | Resistance |
PIN 2 – PIN 3 | 2.755 ~ 4.133 kΩ |
PIN 1 – PIN 3 | 1.892 ~ 2.838 kΩ |
PIN 1 – PIN 2 | 1.714 ~ 2.838 kΩ |
Remove the coupling assembly.
(Refer to Coupling Assembly - " Direct Electro Hydraulic Actuator Coupling")
Remove the extension cable (A).
Remove the pressure sensor (A) with 24mm socket.
Keep going horizontal state to prevent leaks during remove the pressure sensor.
Tightening torque:
7.8 ~ 9.8 N.m (0.8 ~ 1.0kgf.m, 5.8 ~ 7.2 lb-ft)
Check the cleanliness of the pressure sensor before installation.
Check the pressure sensor O-ring (A).
Install in the reverse order of removal.
