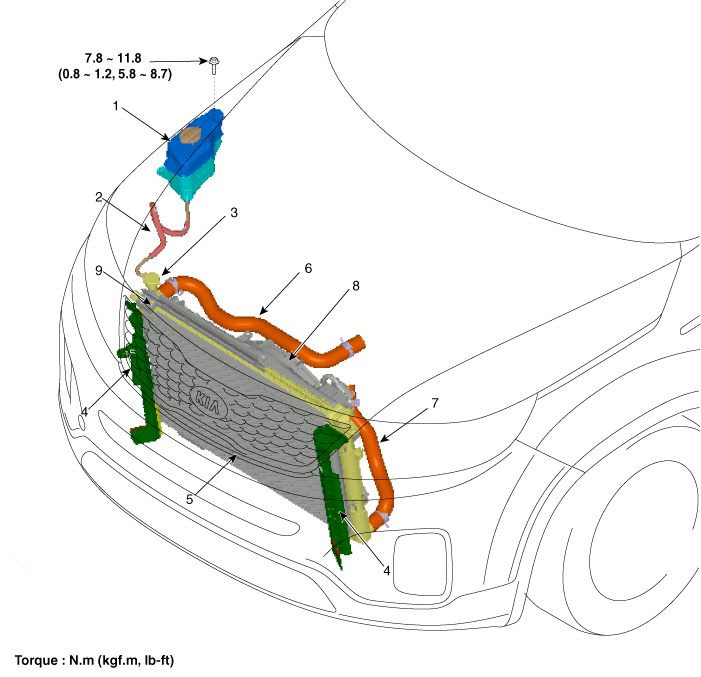

1. Reservior tank

2. Over flow hose

3. Radiator cap

4. Side air guard

5. Radiator

6. Radiator upper hose

7. Radiator lower hose

8. Cooling fan

9. Upper air guard

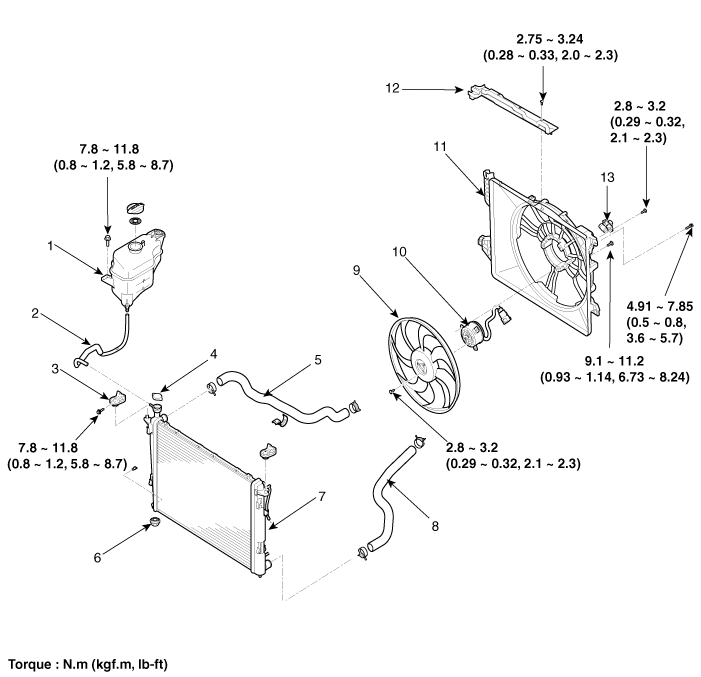

1. Reservior tank

2. Over flow hose

3. Radiator upper bracket

4. Radiator cap

5. Radiator upper hose

6. Radiator lower barcket

7. Radiator

8. Radiator lower hose

9. Cooling fan

10. Cooling fan motor

11. Cooling fan shroud

12. Upper air guard

13. Resister
