Components

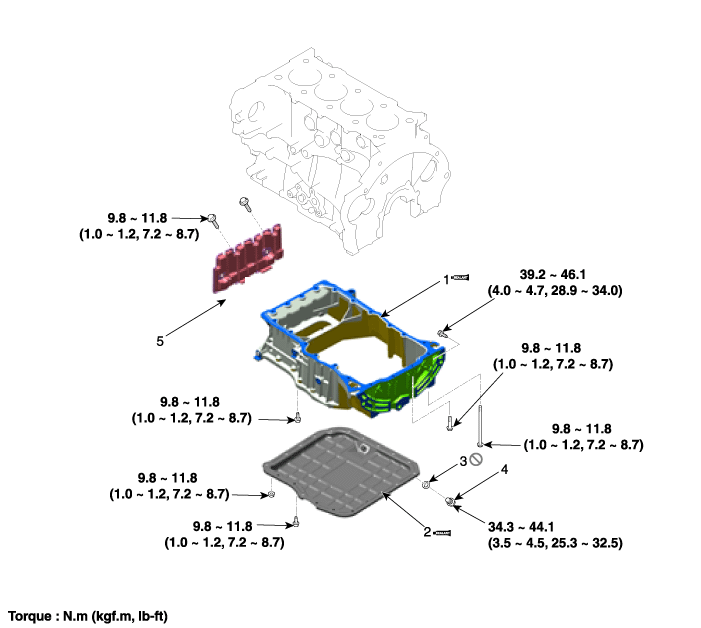

Without Oil Level Sensor (New Oil Pan)

1. Upper oil pan

2. Lower oil pan

3. Drain plug gasket

4. Drain plug

5. Oil pan cover

Without Oil Level Sensor (Old Oil Pan)

1. Upper oil pan

2. Lower oil pan

3. Drain plug gasket

4. Drain plug

5. Oil pan cover

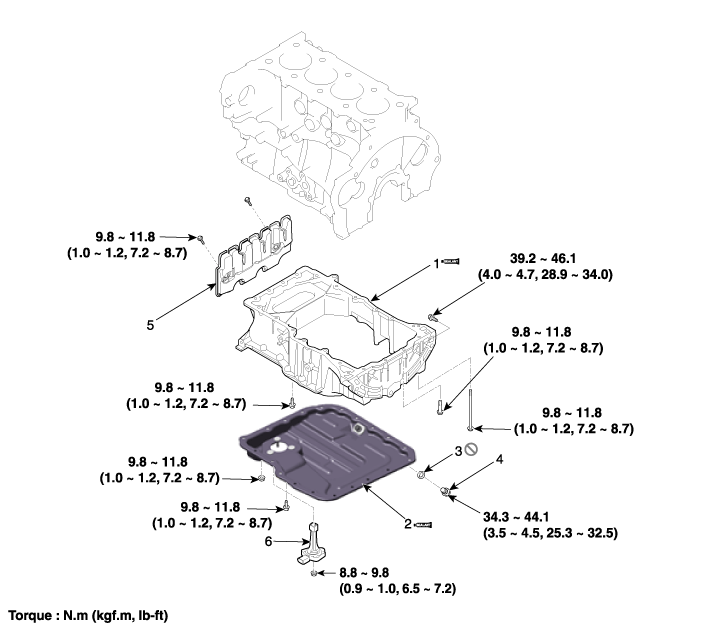

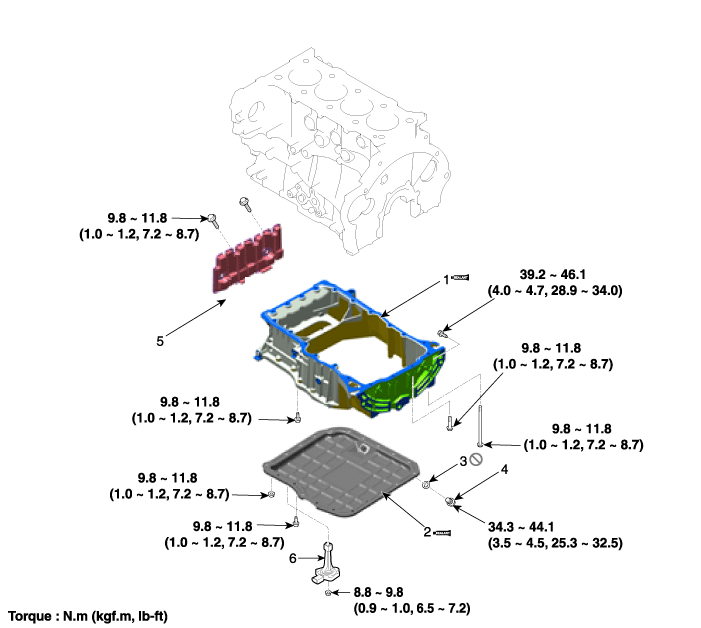

With Oil Level Sensor (New Oil Pan)

1. Upper oil pan

2. Lower oil pan

3. Drain plug gasket

4. Drain plug

5. Oil pan cover

6. Oil level sensor

With Oil Level Sensor (Old Oil Pan)

1. Upper oil pan

2. Lower oil pan

3.Drain plug gasket

4. Drain plug

5. Oil pan cover

6. Oil level sensor
