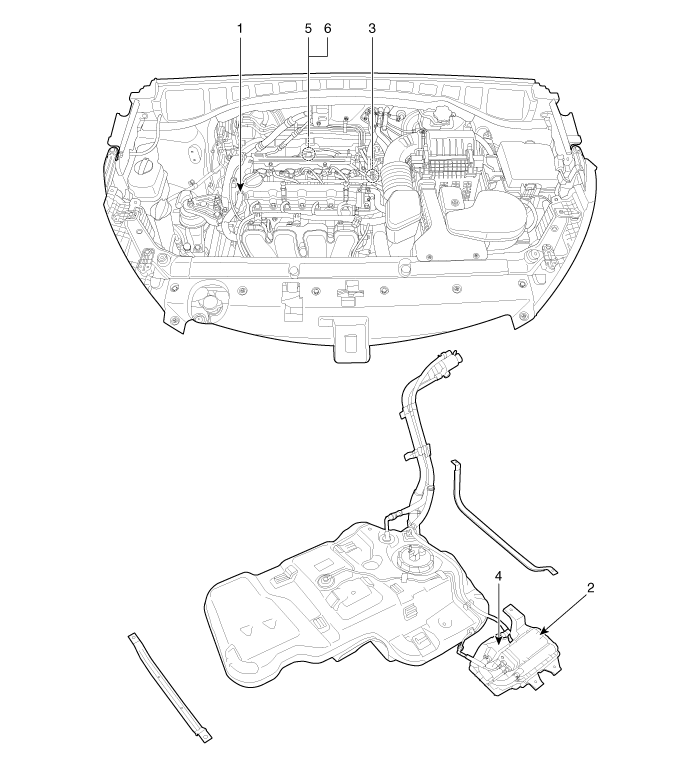

1. PCV Valve
2. Canister
4. Fuel Tank Air Filter
3. Purge Control Solenoid Valve (PCSV)
5. Catalytic Converter [WCC]
6. Catalytic Converter [UCC]
1. PCV Valve 2. Canister 3. Purge Control Solenoid Valve (PCSV) | 4. Fuel Tank Air Filter 5. Catalytic Converter [WCC] 6. Catalytic Converter [UCC] |
1. PCV Valve | 2. Canister 4. Fuel Tank Air Filter |
| |
3. Purge Control Solenoid Valve (PCSV) | 5. Catalytic Converter [WCC] |
| |
6. Catalytic Converter [UCC] | |
|
