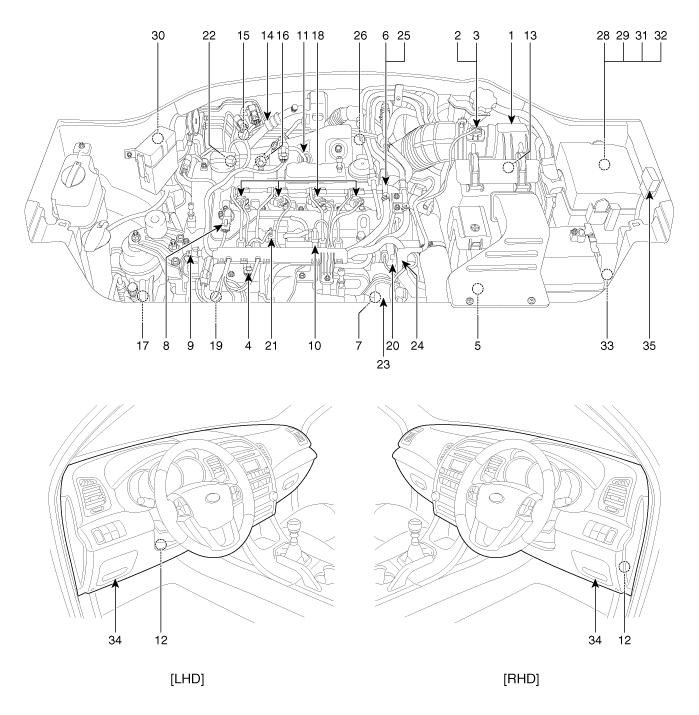

1. ECM (Engine Control Module)
2. Mass Air Flow Sensor (MAFS)
3. Intake Air Temperature Sensor (IATS) #1
4. Boost Pressure Sensor (BPS)
5. Intake Air Temperature Sensor (IATS) #2
6. Engine Coolant Temperature Sensor (ECTS)
7. Crankshaft Position Sensor (CKPS)
8. Camshaft Position Sensor (CMPS)
9. Rail Pressure Sensor (RPS)
10. Fuel Temperature Sensor (FTS)
21. EGR Cooler Bypass Solenoid Valve
11. Lambda Sensor
12. Accelerator Pedal Position Sensor (APS)
13. Water Sensor [LHD]
13. Water Sensor [RHD]
14. DPF Differential Pressure Sensor (DPS)
15. LP-EGR Differential Pressure Sensor (DPS)
16. Exhaust Gas Temperature Sensor (EGTS)
17. A/C Pressure Transducer (APT)
18. Injector
19. Fuel Pressure Regulator Valve (FPRV)
20. Rail Pressure Regulator Valve (RPRV)
22. LP-EGR Valve
23. Air Control Valve (ACV)
24. Variable Swirl Actuator (VSA)
25. Electric EGR Control Valve (EEGR)
26. Electric VGT Control Actuator
27. Exhaust Pressure Control Valve (EPCV)
28. Main Relay (EMS box)
29. Fuel Pump Relay (EMS box)
30. PTC Heater Relay
31. Cooling Fan Relay [High]
32. Cooling Fan Relay [Low]
33. Glow FET Relay
34. Data Link Connector (DLC) [LHD]
34. Data Link Connector (DLC) [RHD]
35. Multi-Purpose Check Connector
