Inspection
1.

Remove the engine cover.

(Refer to Engine Mechanical System - "Engine Cover")

2.

Remove the air cleaner assembly.

(Refer to Engine Mechanical System - "Air Cleaner")

3.

Disconnect the back up lamp switch connector (A).

4.

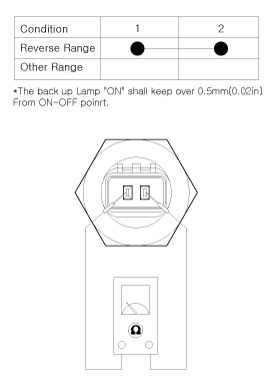

Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity.

Replacement
1.

Remove the engine cover.

(Refer to Engine Mechanical System - "Engine Cover")

2.

Remove the air cleaner assembly.

(Refer to Engine Mechanical System - "Air Cleaner")

3.

Disconnect the back up lamp switch connector (A) and then replace the switch.

Tightening torque :

29.4 ~ 34.3 N.m (3.0 ~ 3.5 kgf.m, 21.7 ~ 25.3 lb-ft)
