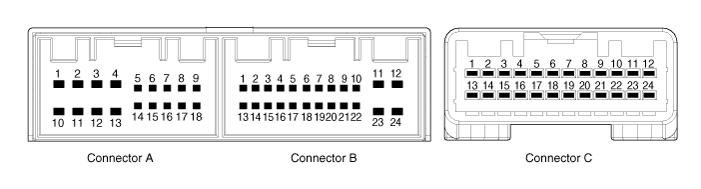

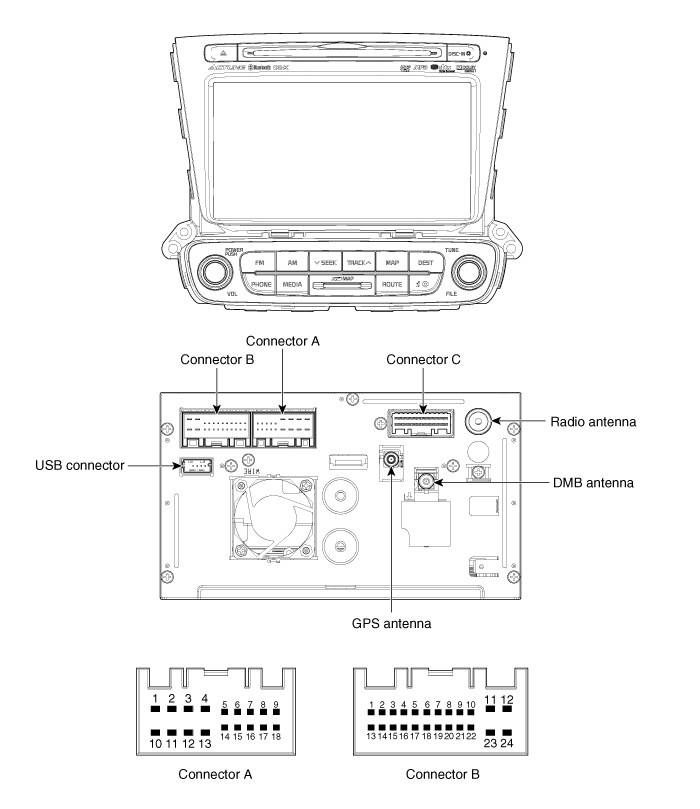

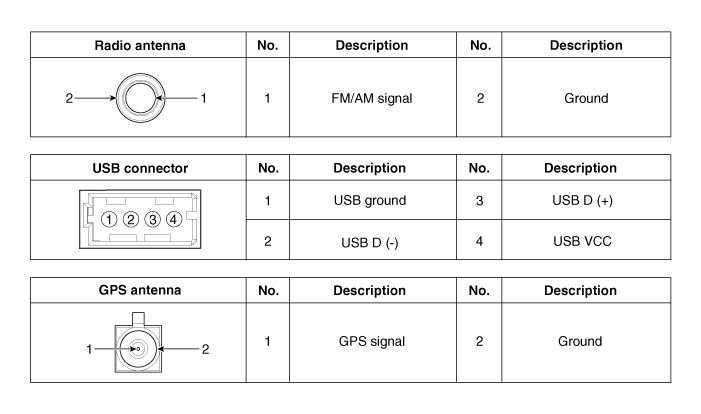

No. | Connector A | Connector B | Connector C |
1 | - | MM CAN High | - |
2 | Parking V VIDEO | - | - |
3 | Parking V GND | Parking (MT) | - |
4 | Rear camera shield ground | Steering wheel remocon | MTS/TMU ground |
5 | SPDIF ground | - | RS422 Tx + |
6 | SPDIF (+) | IGN | RS422 Tx - |
7 | ALT L | AUX VIDEO | RS422 Rx - |
8 | Illumination (+) | AUX right input | RS422 Rx + |
9 | R position | AUX ground | - (LVDS PDN) |
10 | - | MIC (+) | Fuel indicator |
11 | Rear camera power | ACC (+) | - |
12 | Navigation voice (-) | Battery (+) | Ground |
13 | Navigation voice (+) | MM CAN Low | - |
14 | - | Auto light | - |
15 | SPDIF (-) | P position (AT) | - |
16 | Door key unlock | Vehicle speed | - |
17 | Illumination (-) | Remocon ground | - |
18 | Antenna remocon power | - | - |
19 |
| AUX VIDEO ground | - |
20 | AUX detect | MTS/TMU voice (+) | |
21 | AUX left input | MTS/TMU voice (-) | |
22 | MIC (-) | - | |
23 | Power ground | Ground | |
24 | Power ground | - |
