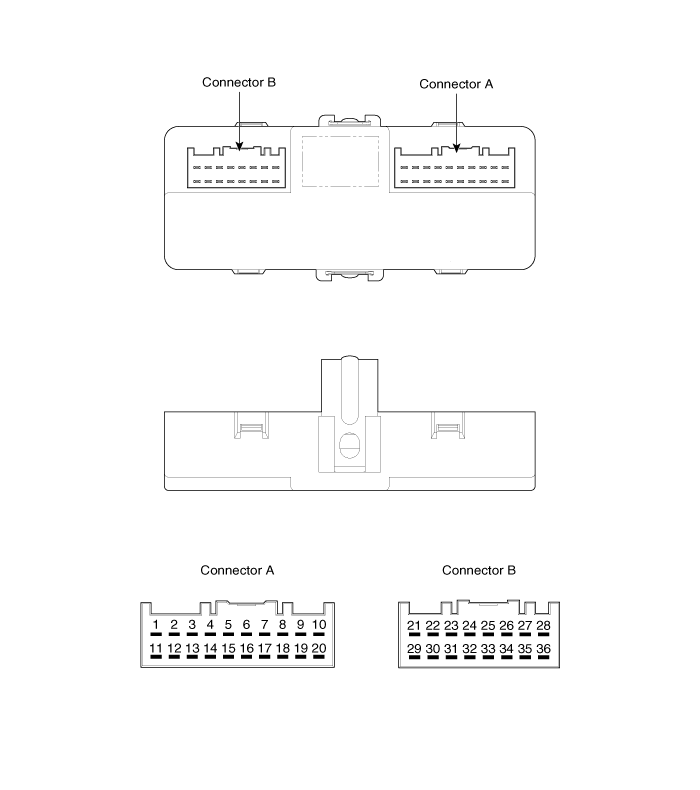

Pin No. | Description | Pin No. | Description |
1 | Rear wiper motor power | 19 | GND |
2 | IPM (Rear wiper) | 20 | Front seat heater fuse (20A) |
3 | Stop lamp | 21 | Head lamp washer |
4 | IPM (Rear seat heater relay) | 22 | IPM (Head lamp washer) |
5 | ESP unit | 23 | A/C module |
6 | IPM (DBC 10A) | 24 | - |
7 | Stop lamp switch | 25 | - |
8 | IPM (Stop lamp 15A) | 26 | IPM (Mirror unfolding) |
9 | - | 27 | IPM (Door 10A fuse) |
10 | IPM (A/C) | 28 | Mirror unfolding motor |
11 | Rear wiper fuse (15A) | 29 | IPM (Head lamp whsher 20A fuse) |
12 | Rear wiper motor signal | 30 | IPM (Mirror folding) |
13 | Rear RH seat heater fuse (15A) | 31 | - |
14 | Rear RH seat heater | 32 | IPM (Rear A/C 20A fuse) |
15 | GND | 33 | Rear A/C switch IND, Blower |
16 | IPM (Rear LH seat heater relay) | 34 | GND |
17 | Rear LH seat heater fuse (15A) | 35 | Mirror folding motor |
18 | Rear LH seat heater relay | 36 | IPM (Door 10A fuse) |
