Disconnect the negative(-) battery terminal.

Remove the crash pad lower panel (A).

(Refer to Body - "Crash pad")

Remove the start/stop button cover (A) after loosening the mounting screw.

Disconnect the connector (A).

Remove the start/stop button (A) after loosening the mounting screws.

Install the start/stop button.

Install the start/stop button cover.

Install the crash pad lower panel.

It will be able to diagnose defects of Smart key with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.

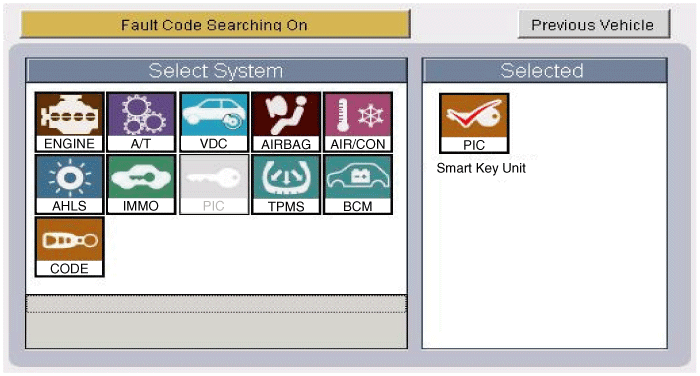

Select model and "Smart key system(Button start)" menu.

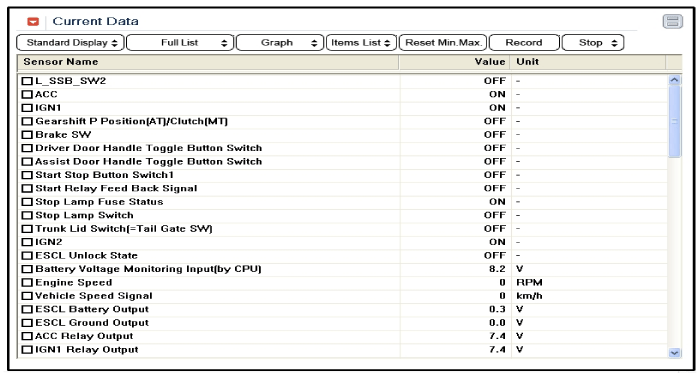

Select "Current Data", if you want to check current data of smart key system.

It provides the input/output status of each module.

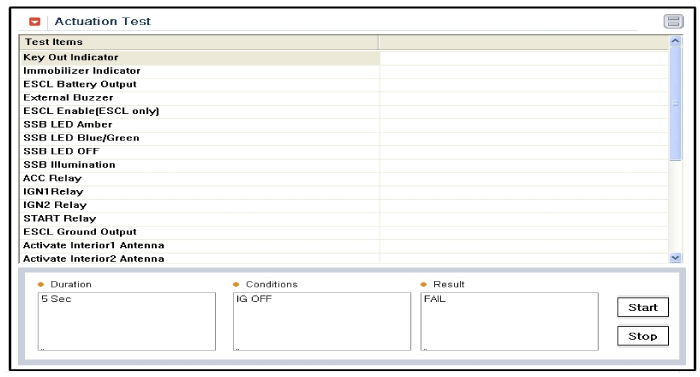

If you want to check smart key system operation forcefully, select "Actuation test".
