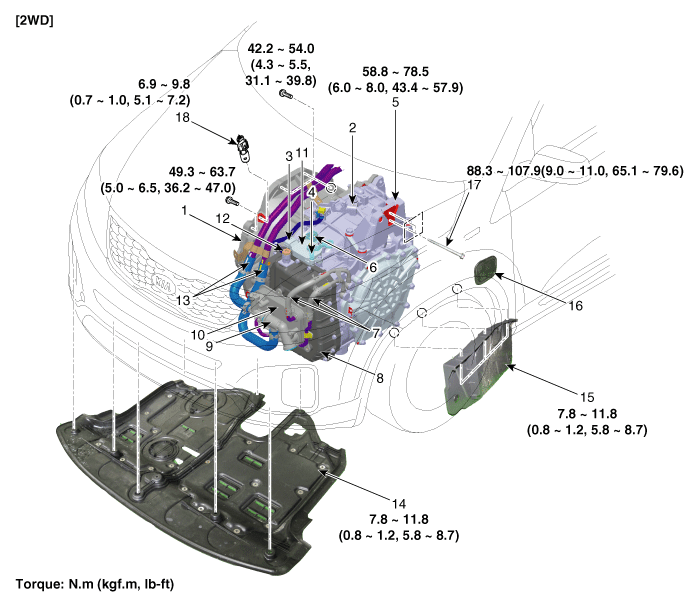

1. Automatic transaxle

2. Shift cable bracket

3. Inhibitor switch connector

4. Manual control lever

5. Automatic transaxle mounting support bracket

6. Solenoid valve connector

7. ATF hose&pipe

8. Valve body cover

9. Bypass valve

10. ATF Warmer

11. Inhibitor switch

12. ATF Injection hole(eyebolt)

13. Coolant hose&pipe assembly

14. Under cover

15. Side cover

16. Automatice transaxle mounting bracket cover

17. Automatice transaxle mounting bracket bolt

18. CKP Sensor

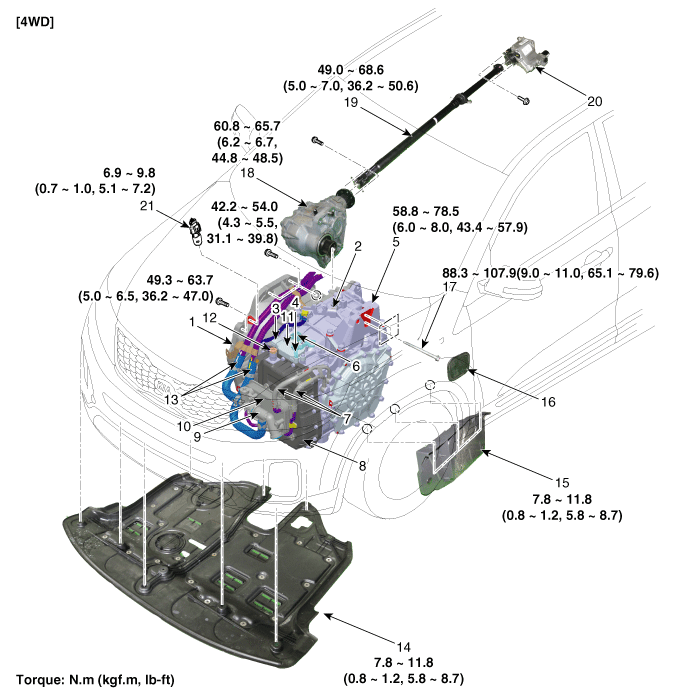

1. Automatic transaxle

2. Shift cable bracket

3. Inhibitor switch connector

4. Manual control lever

5. Automatic transaxle mounting support bracket

6. Solenoid valve connector

7. ATF hose&pipe

8. Valve body cover

9. Bypass valve

10. ATF Warmer

11. Inhibitor switch

12. ATF Injection hole(eyebolt)

13. Coolant hose&pipe assembly

14. Under cover

15. Side cover

16. Automatice transaxle mounting bracket cover

17. Automatice transaxle mounting bracket bolt

18. Transfer assembly

19. Propeller shaft

20. Coupling Assembly

21. CKP Sensor
