3.
After loosening the mounting bolts, then remove the assist handle bracket (A).
Put on glove to protect your hands.
Take care not to scratch the interior trims and other parts.
Remove the roof trim.
(Refer to Roof Trim - "Roof Trim Assembly")
Remove the sunroof glass.
(Refer to Sunroof - "Sunroof Glass")
After loosening the mounting bolts, then remove the assist handle bracket (A).

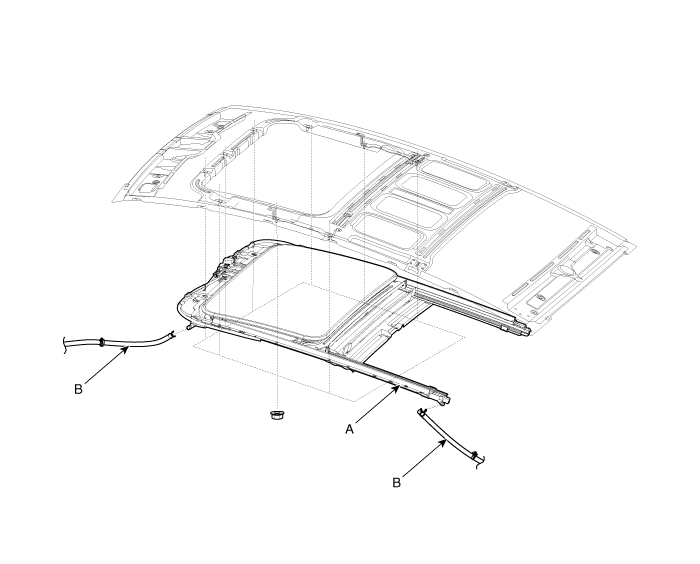

Disconnect the drain tubes (B).
After loosening the mounding nuts, remove the sunroof assembly (A).
Tightening torque:
3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)
Install in the reverse order of removal.
Make sure to initialize the motor.
