1.

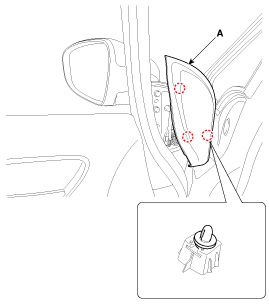

Using a screwdriver or remover, remove the front door quadrant inner cover (A).
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.
Using a screwdriver or remover, remove the front door quadrant inner cover (A).
Disconnect the outside rear view mirror connector (B).
After loosening the mounting bolts, then remove the outside rear view mirror (A).
Tightening torque :
6.9~10.8 N.m(0.7~1.1 kgf.m, 5.1~8.0 lb-ft)
Install in the reverse order of removal.
Make sure the connector is connected properly.
Replace any damaged clips.
