1.
Disconnect the gear boots (A).
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Disconnect the gear boots (A).

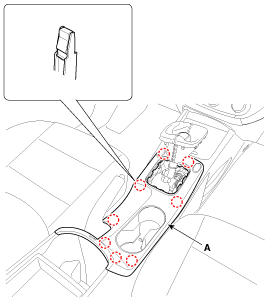

Using a screwdriver or remover, remove the console upper cover (A).
Disconnect the connector (A).
Remove the console armrest tray (A).
Remove the console armrest met (A).

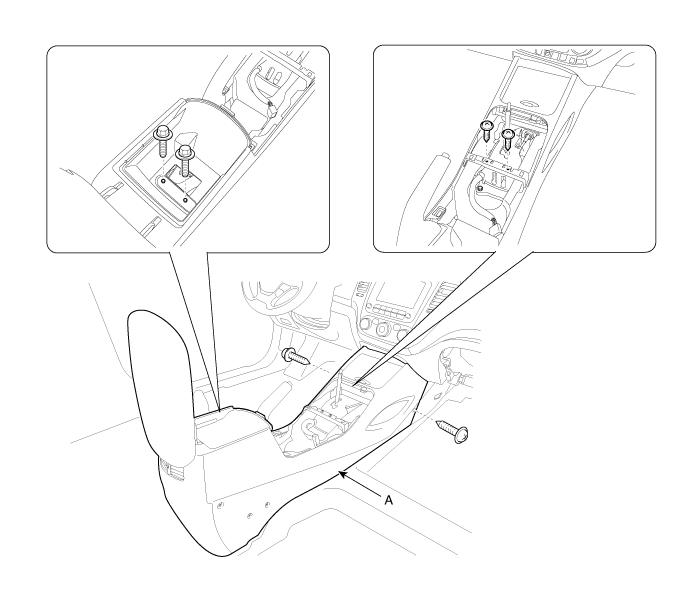

After loosening the mounting screws and bolts, then remove the floor console assembly (A).
Disconnect the connectors (A).
Install in the reverse order of removal.
Make sure the connector is connected properly.
Replace any damaged clips.
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Remove the gear boots (B) and gear knob (A).

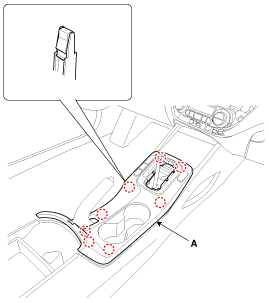

Using a screwdriver or remover, remove the console upper cover (A).
Disconnect the connectors (A).
Remove the console armrest tray (A).
Remove the console armrest met (A).

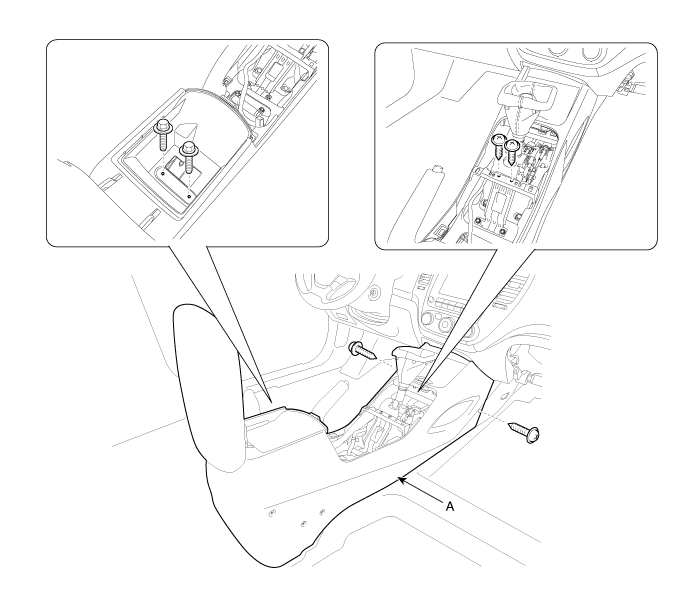

After loosening the mounting screws and bolts, then remove the floor console assembly (A).
Disconnect the connectors (A).
Install in the reverse order of removal.
Make sure the connector is connected properly.
Replace any damaged clips.
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Remove the floor console assembly.
Remove it console side cover (A) by pushing it rearward.
[LH]
[RH]
Install in the reverse order of removal.
Replace any damaged clips.
