2.

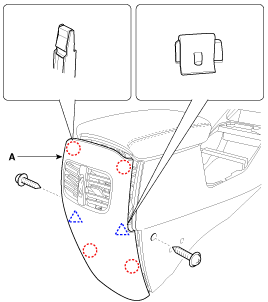

Loosen the rear console cover mounting screws (A).
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")
Loosen the rear console cover mounting screws (A).
After loosening the mounting screws, then remove the rear console cover (A).
Install in the reverse order of removal.
Replace any damaged clips.
