6.

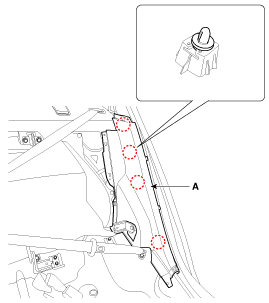

After loosening the mounting clips and screws, then remove the rear partition trim (A).
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
Remove the rear seat back assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
Remove the rear pillar trim.
(Refer to Interior Trim - "Rear Pillar Trim")
Remove the rear door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
Slighty remove the rear door body side weatherstrip.
After loosening the mounting clips and screws, then remove the rear partition trim (A).
Using a screwdriver or remover, remove the rear wheel house trim (A).
Install in the reverse order of removal.
Replace any damaged clips.
