Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
Remove the rear seat back assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
Remove the rear door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
Remove the rear pillar trim.
(Refer to Interior Trim - "Rear Pillar Trim")

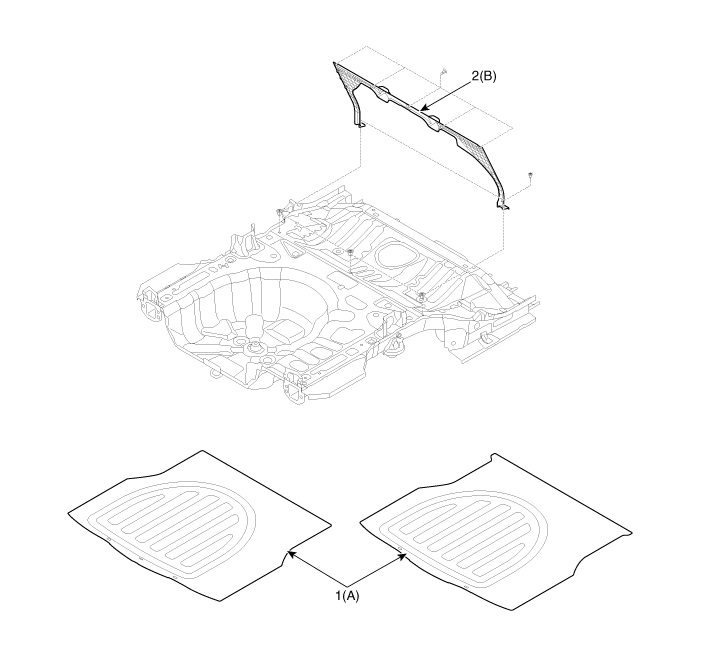

Remove the luggage covering mat (A).
After loosening the mounting screws and clips, then remove the rear partition trim (B).
Using a screwdriver or remover, remove the rear wheel house trim (C).
Using a clip remover, detach the clips, and remove the rear transverse trim (D).
After loosening the mounting screws, then remove the luggage side trim (E).
Install in the reverse order of removal.
Replace any damaged clips.
[Folding Seat Type]
1. Luggage covering mat | 2. Rear partition trim |
[Fixed Seat Type]
2. Rear partition trim 3. Rear wheel house trim [LH] 4. Rear wheel house trim [RH] 5. Rear transverse trim | 6. Luggage side trim [LH] 7. Luggage side trim [RH] 8. Rear Package Tray Trim |
