2.

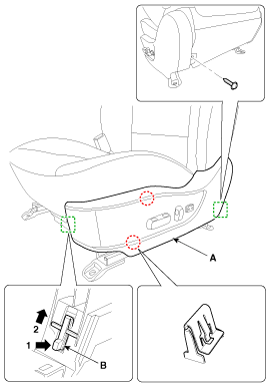

To remove the front seat shield outer cover (A), push the lock pin (B) in the direction of the arrow.
Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
Loosen the front seat shield outer cover mounting screws.
To remove the front seat shield outer cover (A), push the lock pin (B) in the direction of the arrow.
Disconnect the connector (A).
Install in the reverse order of removal.
Make sure the connector is plugged in properly.
Replace any damaged clips.
