1.

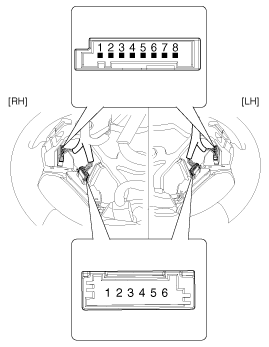

Check for resistance between terminals in each switch position.
[Audio (LH)]
Switch | Connector terminal | Resistance (±5%) |
Seek up | 2-7 | 430 Ω |
Seek down | 2-7 | 1.1 kΩ |
Mode | 2-7 | 2.11 kΩ |
Mute | 2-7 | 3.11 kΩ |
Volume up | 2-7 | 4.61 kΩ |
Volume down | 2-7 | 6.81 kΩ |
[Cruise + Flex (RH)]
Switch | Connector terminal | Resistance (±5%) |
Cancel | 2-7 | 180 Ω |
SET | 2-7 | 330 Ω |
Resume | 2-7 | 550 Ω |
Cruise | 2-7 | 880 Ω |
Flex steer | 2-7 | 5.54 kΩ |
[Bluetooth + Voice (LH)]
Switch | Connector terminal | Resistance (±5%) |
Voice | 2-5 | 10.71 kΩ |
End of call | 2-5 | 18.91 kΩ |
Call | 2-5 | 40.91 kΩ |
[Trip (RH)]
Switch | Connector terminal | Resistance (±5%) |
Trip | 2-5 | 330 Ω |
Reset | 2-5 | 550 Ω |
Select | 2-5 | 880 Ω |
