1.
With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

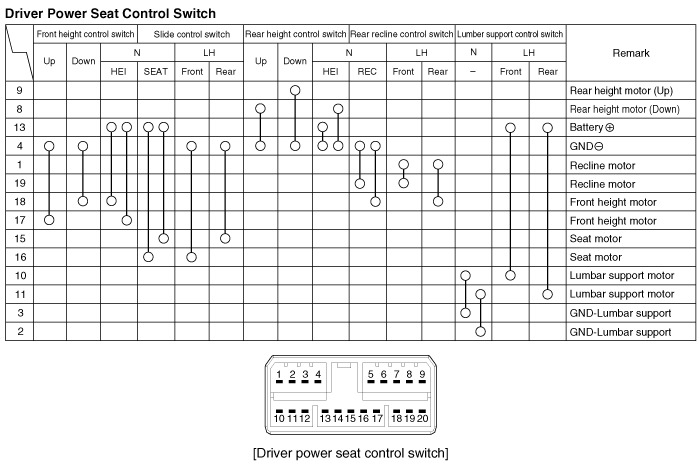

A : Power seat control switch

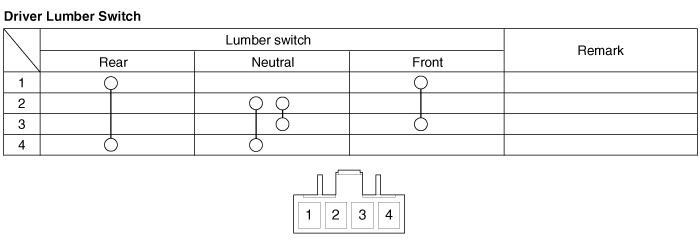

B : Lumbar support switch
With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.
A : Power seat control switch
B : Lumbar support switch
