Inspection
1.

Check point (Warning indicator)

NO

Ref

Symbol

Color

Name

Signal Input

Signal Control

(Unit / Sensor)

Check Point

1

Green

Turn Left

C-CAN

BCM

1.

CAN line failure

2

Green

Turn Right

C-CAN

3

Green

Front Fog

C-CAN

BCM

1.

CAN line failure

4

Yellow

Rear Fog

C-CAN

BCM

1.

CAN line failure

5

Blue

High Beam

C-CAN

BCM

1.

CAN line failure

6

Green

Low Beam

Hardwire

BCM

1.

Wiring failure

7

Green

Hardwire

C-CAN

BCM

1.

Wiring failure

8

Green

Cruise

C-CAN

EMS

1.

CAN line failure

9

Green

SET

C-CAN

EMS

1.

CAN line failure

10

Red

Seat Belt

C-CAN

BCM

1.

CAN line failure

11

Red

Air Bag

C-CAN

ACU

1.

CAN line failure

12

Yellow

Trunk Open

C-CAN

BCM

1.

CAN line failure

13

Red

Door Open

C-CAN

BCM

1.

CAN line failure

14

Red

High Temperature

C-CAN

EMS

1.

CAN line failure

15

Yellow

Immobilizer

Hardwire

SMK

1.

Wiring failure

16

Yellow

ABS

C-CAN

ESC

1.

CAN line failure

17

Yellow

ESC

C-CAN

ESC

1.

CAN line failure

18

Yellow

ESC OFF

C-CAN

ESC

1.

CAN line failure

19

Yellow

TPMS

(Tread & Fail)

C-CAN

TPMS

1.

CAN line failure

20

Yellow

Fuel Low

Low fuel resistance

Fuel Sender

1.

Fuel sender failure

2.

Wiring failure

21

Red

Parking Brake

C-CAN

BCM & ABS

or

ESC

1.

CAN line failure

22

Yellow

Oil Pressure

Hardwire

Oil Pressure Sensor

1.

Wiring failure

23

Red

Battery Charge

Hardwire

Battery Sensor

1.

Wiring failure

24

Yellow

Check Engine

C-CAN

EMS

1.

CAN line failure

25

Yellow

Low Washer

Hardwire

Water Level Sensor

1.

Wiring failure

26

Green

Active ECO

Hardwire

ECO ON/OFF Switch

1.

Switch failure

2.

Wiring failure

Passive ECO

C-CAN

27

Red

EPS

C-CAN

EPS Unit

1.

EPS unit failure

2.

CAN line failure

2.

Check point (Gauge)

No.

Name

Signal Input

Signal Control

(Unit/Sensor)

Check Point

1

Speedometer

C-CAN

ABS, ESC

1.

CAN Line failure

2

Tachometer

C-CAN

EMS

1.

CAN Line failure

3

Cooling water temperature

C-CAN

EMS

1.

CAN Line failure

4

Fuel

Hardwire

Fuel sender

1.

Fuel sender failure

2.

Wiring failure

3.

Connector terminal check list

No.

Description

Input/Output

Communication

Check Point

Spec

Condition

A1

Alternator L output

Output

Hardwire

-

IGN switch ON

A2

DC 12V input

Input

Hardwire

-

IGN switch ON

A3

Aig Bag (+)

Input

Hardwire

9 ~ 16 V

IGN switch ON

A4

Rheostat up switch

Input

Hardwire

Below 2V

IGN switch ON

Rheostat up switch ON

A5

Rheostat down switch

Input

Hardwire

Below 2V

IGN switch ON

Rheostat down switch ON

A6

Oil pressure indicator

Input

Hardwire

Below 1.5V

IGN switch ON

Oil pressure switch ON

A7

Active ECO

Input

Hardwire

Below 1.5V

IGN switch ON

A8

Battery Charge

Input

Hardwire

Below 1.5V

IGN switch ON

Charge switch ON

A9

Low washer

Input

Hardwire

-

IGN switch ON

A10

Immobilizer indicator

Input

Hardwire/CAN

Below 1.5V

IGN switch ON

A11

Steering wheel

input

Hardwire

-

IGN switch ON

A12

Trip switch 1

Input

Hardwire

0.7 ~ 4.4 V

IGN switch ON

A13

Trip switch (-)

Ground

Hardwire

Below 1V

Switch ground input

A14

AT S output

Output

Hardwire

7 ~ 15 V

IGN switch ON

A15

AT R position output

Output

Hardwire

7 ~ 15 V

IGN switch ON

A16

AT D position output

Output

Hardwire

7 ~ 15 V

IGN switch ON

A17

AT N position output

Output

Hardwire

7 ~ 15 V

IGN switch ON

A18

AT P position output

Output

Hardwire

7 ~ 15 V

IGN switch ON

A19

Detent output

Output

Hardwire

9 ~ 16 V

IGN switch ON

Rheostat MAX

A20

4P output

Output

Hardwire

9 ~ 16 V

IGN switch ON

Vehicle speed 1㎞/h excess

A21

Battery (+)

Input

Hardwire

9 ~ 16 V

Always

A22

Ignition (+)

Input

Hardwire

9 ~ 16 V

IGN switch ON

A23

Illumination (+)

Input

Hardwire

Above 6 V

IGN switch ON

Illumination (+) switch ON

A24

-

　

　

　

　

A25

Signal ground 1

Ground

Hardwire

Below 1V

Switch ground input

A26

-

　

　

　

　

A27

MM CAN High

Input/ Ouptut

CAN

-

-

A28

MM CAN Low

Input/ Ouptut

CAN

-

-

A29

-

　

　

　

　

A30

C CAN High

Input/ Ouptut

CAN

-

-

A31

C CAN Low

Input/ Ouptut

CAN

-

-

A32

-

　

　

　

　

A33

Signal ground 2

Ground

Hardwire

Below 1V

Switch ground input

A34

Fuel (-)

Ground

Hardwire

Below 1V

Always

A35

Fuel (+)

Input

Hardwire

Below 1.1 V

IGN switch ON

Fuel Full

Above 10.7V

IGN switch ON

Fuel Empty

A36

5V output

Output

-

-

-

A37

Trip switch 2

Input

Hardwire

0.7 ~ 4.4 V

IGN switch ON

A38

Speed

Input

CAN

9 ~ 16 V

IGN switch ON

A39

Ice warning

Input

-

-

-

A40

Illumination output

Output

Hardwire

9 ~ 16 V

IGN switch ON

Illumination (+) switch ON

4.

Communication information

Transmision Unit

Receive Unit

CAN communication

Reference

Cluster

BCM

C-CAN

Refuel detecede state

Instant fuel consumption information

Low fuel warning information

Vehicle setting condition

Illumination setting

Cluster

EMS

C-CAN

MM-CAN

SPORT/ECO Mode

TCU

ECS

ESP

AVN

Cluster

ACU

C-CAN

Airbag state

ACU

Cluster

CAN

Airbag warning indicator control

BCM

Cluster

CAN

Hood indicator display

DATC

Cluster

CAN

External temperature display

ECS

Cluster

CAN

Warning control

EMS

Cluster

CAN

Tachometer control

Temperature guage control

Check engine symbol, CRUISE and SET indicator control

ESC

Cluster

CAN

-

BCM

Cluster

CAN

Vehicle setting control

Warnig indicator and warning sound, PAS control어

SMK

Cluster

CAN

Smart key indicator display

TCS

Cluster

CAN

ESC OFF switch condition display

Warning indicator display

TCU

Cluster

CAN

AT gear information display

Speed input

TPMS

Cluster

CAN

TPMS indicator

5.

The other information about the cluster

(1)

USM (User Setting Mode)

A.

USM is set using the steering wheel remote control button.

B.

IMS seat, IMS steering, auto door lock/unlock, head lamp escort, welcome light, welcome sound and triple turn signal lamp are controled.

(2)

USM setting procedure

A.

Send the USM value to the BCM

B.

BCM send the setting value to the each module through CAN.

C.

Each modules send the setting complete value to BCM.

D.

BCM send the final setting value to cluster through CAN.

Diagnosis with GDS
1.

It will be able to diagnose defects of CLU with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.

2.

Select model and "BCM".

3.

Select the "Cluster Moduel" to check.

4.

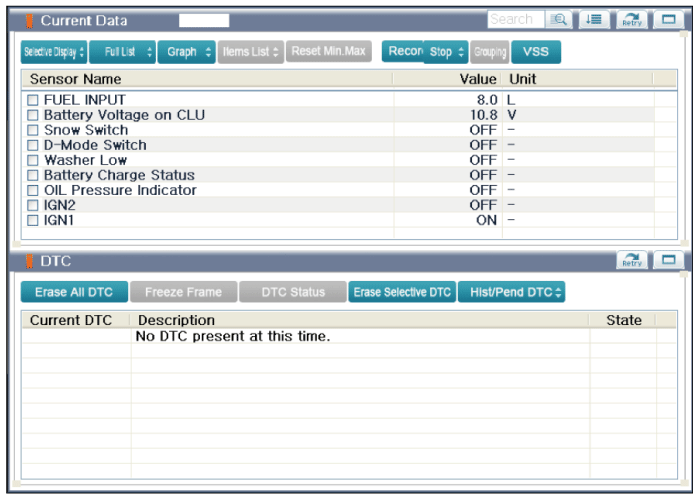

Select "Input/output monitoring", if you will check current data of instrument cluster.

5.

If you will check each module data operation forcefully, select "Actuation test".

6.

To check the DTC of the each module, select "DIAGNOSTIC TROUBLE CODES".

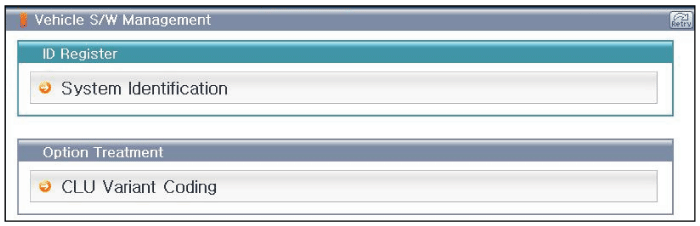

CLU Variant Coding

After replacing the cluster with a new one, must be performed the “Variant Coding” procedure.

1.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

2.

Select model and "BCM".

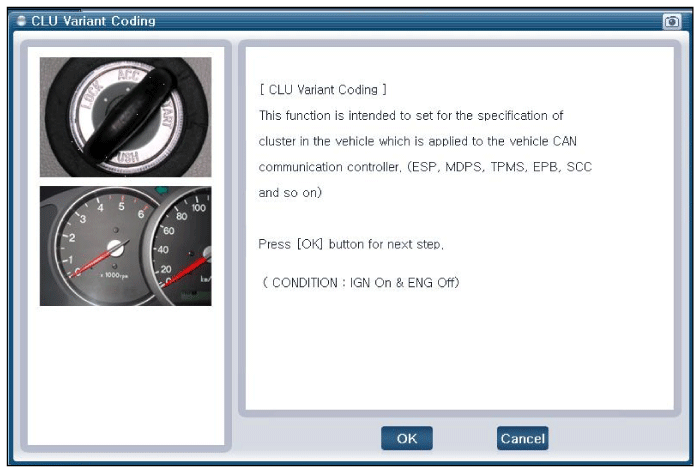

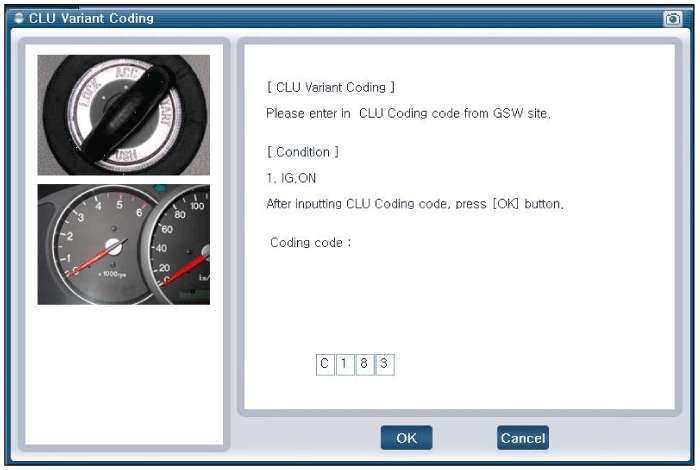

3.

Select Variant coding mode to perform.

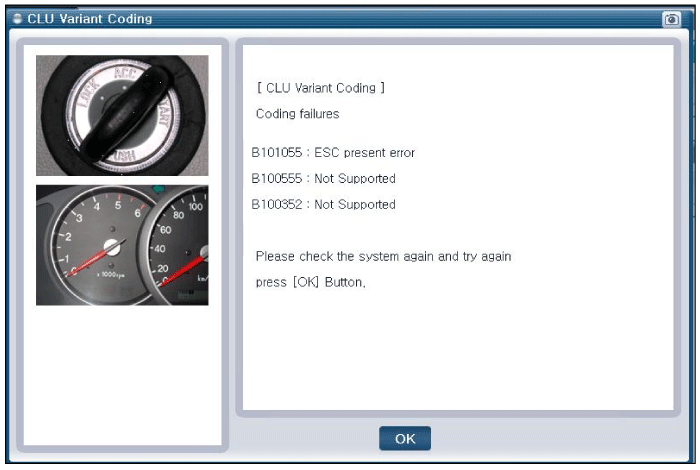

4.

If the trouble codes occurred when performing variant coding, try the CLU variant coding again after checking the installation status of CLU system.
