Remove the front door trim.

(Refer to Body - "Front Door Trim")

Remove the front door module.

(Refer to Body - "Front Door Module")

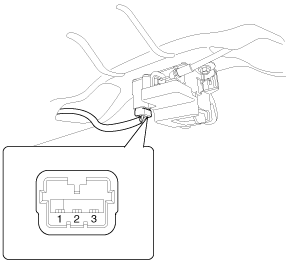

Disconnect the connector from the actuator.

Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

Remove the rear door trim.

(Refer to Body - "Rear Door Trim")

Remove the rear door module.

(Refer to Body - "Rear Door Module")

Disconnect the connector from the actuator.

Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

Remove the trunk lid trim.

(Refer to Body - "Trunk Lid Trim")

Disconnect the connector from the actuator.

Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
