Removal
1.

Disconnect the negative (-) battery terminal.

2.

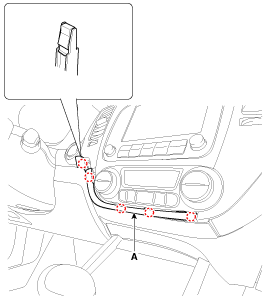

Using a screwdriver or remover, remove the center garnish [LH] (A).

3.

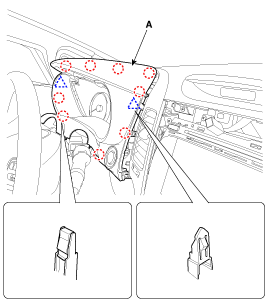

Using a screwdriver or remover, remove the cluster fascia panel (A).

4.

Remove the start/stop button (A) after loosening the screws from the cluster fascia panel.
