Installation
1.

Install in the reverse order of removal.

note

After replacement or reinstallation procedure of the automatic transaxle assembly, must perform procedures below.

●

Adding automatic transaxle fluid.

(Refer to Hydraulic System - "Fluid")

●

If the oil seal on the transaxle case side is damaged and fluid is leaking, replace the oil seal with a new unit. When installing the new oil seal, use the specialized tool (Oil seal installer: 09453-3L241, Bar: 09231-H1100).

●

After servicing the automatic transaxle or TCM, clear the diagnostic trouble codes (DTC) using the GDS tool.(DTC cannot be cleared by disconnecting the battery.)

●

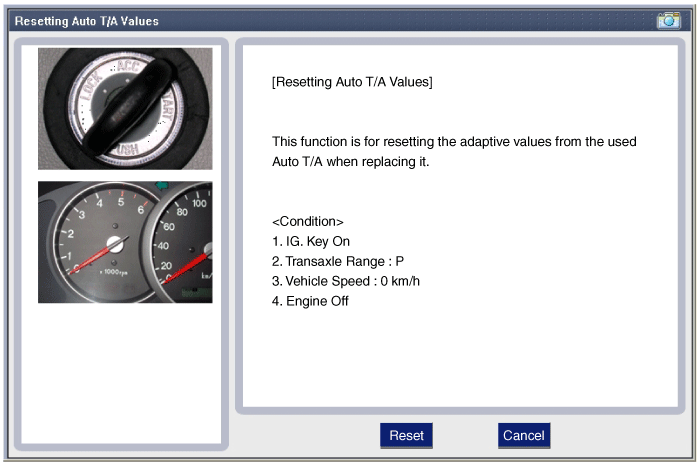

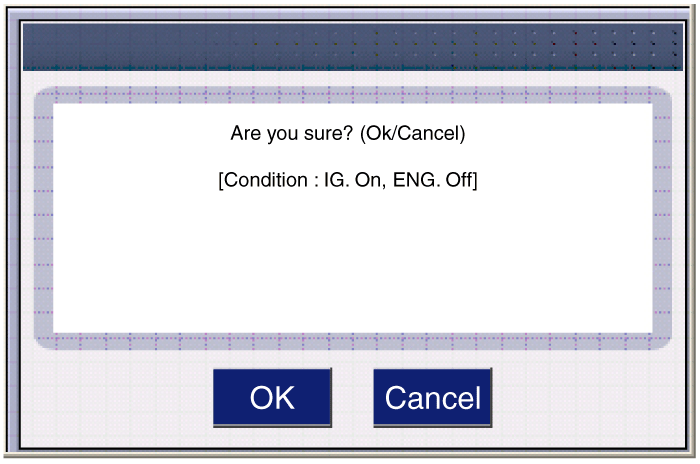

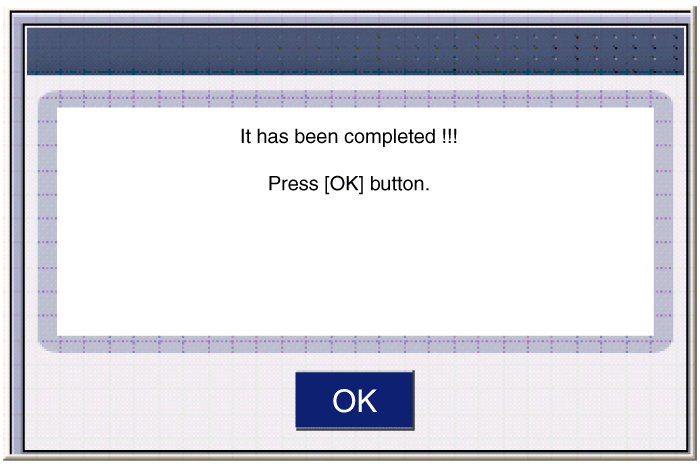

After replacing the automatic transaxle, reset the automatic transaxle's values by using the GDS.

●

Perform TCM learning after replacing the transaxle to prevent slow transaxle response, jerky acceleration and jerky startup.

(Refer to Automatic Transaxle Control System - "Repair procedures")
