4.

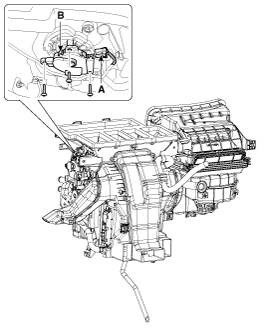

Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the mounting screws.
Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel.
(Refer to Body -"Crash Pad Lower Panel")
Remove the driver's side shower duct by loosening the screw.
Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the mounting screws.
Install in the reverse order of removal.
