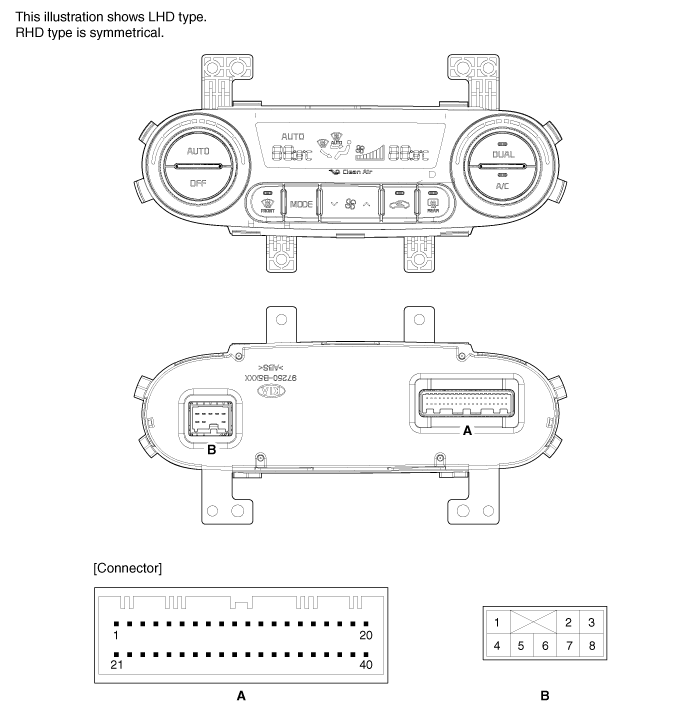

Connector | No. | Description | Connector | No. | Description |
A | 1 | Illumination (+) (Tail) | A | 25 | Humidity (PVM) |
2 | Sensor REF (+5V) | 26 | Ambient sensor (+) | ||
3 | Defog actuator (Open) | 27 | In-car sensor (+) | ||
4 | Defog actuator (Close) | 28 | Evaporator sensor (+) | ||
5 | Mode actuator (Vent) | 29 | ECV (+) | ||
6 | Mode actuator (Defrost) | 30 | ECV (-) | ||
7 | Mode actuator feedback | 31 | Photo sensor (-) － Left | ||
8 | Intake actuator (Fresh) | 32 | Photo sensor (-) － Right | ||
9 | Intake actuator (Recirculation) | 33 | HTD | ||
10 | Intake actuator feedback | 34 | Rear defog switch | ||
11 | Temperature actuator (Cool) - Driver | 35 | K-Line | ||
12 | Temperature actuator (Warm) - Driver | 36 | PTC relay (Gasoline PTC only) | ||
13 | Temperature actuator feedback - Driver | 37 | - | ||
14 | Temperature actuator (Cool) - Passenger | 38 | ISG DC | ||
15 | Temperature actuator (Warm) - Passenger | 39 | - | ||
16 | Temperature actuator feedback - Passenger | 40 | Sensor ground | ||
17 | C_CAN (High) | B | 1 | Ground | |
18 | C_CAN (Low) | 2 | IGN 2 | ||
19 | Detent OUT (+) | 3 | Blower motor (+) | ||
20 | Illumination (-) (Rheostat) | 4 | Ground | ||
21 | Ion signal | 5 | FET (Gate) | ||
22 | Clean signal | 6 | FET (Drain feedback) | ||
23 | Ionizer diagnosis | 7 | IGN 1 | ||
24 | Defog actuator feedback | 8 | Battery (+) |
