Components Location
[Fuel tank assembly]

1. Fuel tank

2. Fuel pump

3. Fuel filter

4. Fuel pressure regulator

5. Canister

6. Fuel tank air filter

7. Fuel tank band

8. Ventilation hose

9. Vapor tube

10. Fuel filler hose

11. Leveling hose

12. Fuel pump plate cover

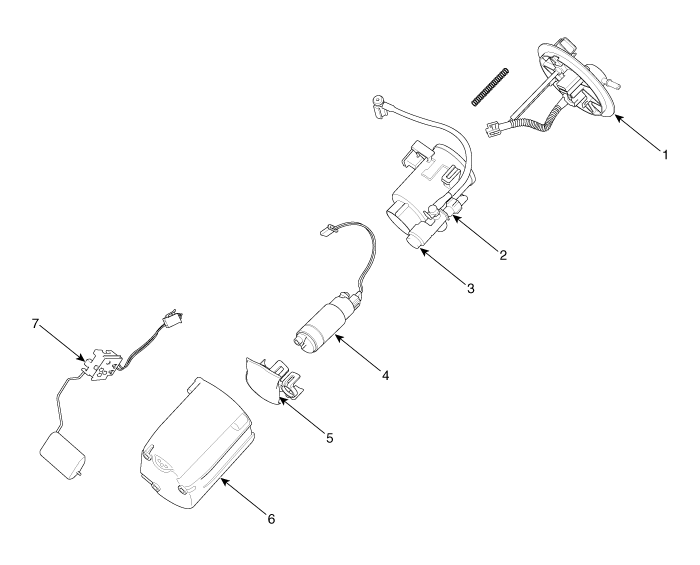

[Fuel pump assembly]

1. Head assembly

2. Fuel filter

3. Fuel pressure regulator

4. Fuel pump motor

5. Pre-filter

6. Reserver-cup

7. Fuel sender

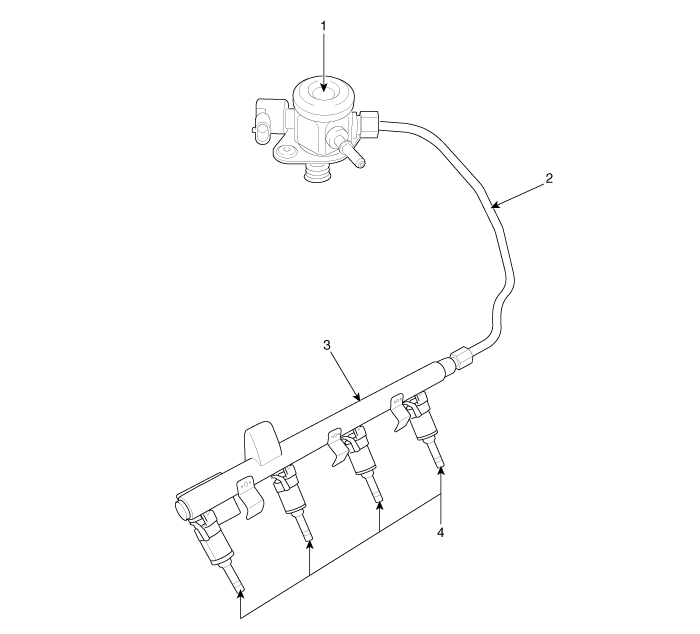

[High Pressure Fuel Line]

1. High Pressure Fuel Pump

2. High Pressure Fuel Pipe

3. Delivery Pipe

4. Injector

warning

In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don’t do any repair work right after engine stops.
